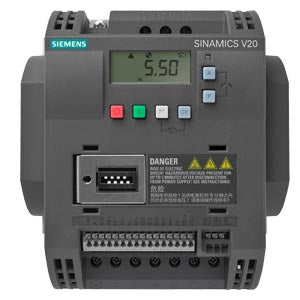

Siemens Sinamics V20 Inverter drive, 3-phase, 15kW Part number 6SL3210-5BE31-5UV0

Product Overview

The SINAMICS V20 is a compact, cost-effective basic performance inverter designed for simple and efficient motor control applications. This robust drive solution features quick commissioning times, ease of operation, and excellent cost-efficiency, making it ideal for operating pumps, fans, compressors, and conveyor belts in both process and manufacturing industries.

Key Features

• Input Voltage: 380-480 V 3 AC (-15/+10% tolerance)
• Frequency Range: 47-63 Hz
• Rated Power: 15 kW with 150% overload capacity for 60 seconds
• Unfiltered Configuration: Standard unfiltered design for cost-effective installation
• Compact Design: Frame size D with dimensions 240 x 207 x 173 mm (W x H x D)
• Protection Rating: IP20/UL Open Type for standard industrial environments

Input/Output Interface

• Digital Inputs: 4 DI for control signals and status monitoring
• Digital Outputs: 2 DO for status indication and control functions
• Analog Inputs: 2 AI for process value monitoring and control
• Analog Outputs: 1 AO for process control and monitoring applications

Communication & Control

• Fieldbus Support: USS/MODBUS RTU communication protocols
• Built-in BOP: Integrated Basic Operator Panel for local operation and parameter setting
• Flexible Installation: Supports both push-through and wall mounting configurations
• Side-by-side mounting: Possible for space-efficient installations

Applications The SINAMICS V20 is specifically designed for basic drive applications including:

• Pump control systems
• Fan and ventilation applications
• Compressor drives
• Conveyor belt systems
• General industrial automation processes

Technical Specifications

• Net Weight: 3.980 kg
• Packaging Dimensions: 270 x 300 x 220 mm
• Country of Origin: China
• Compliance: RoHS compliant since 05.07.2010
• WEEE Compliance: Subject to take-back obligations under WEEE directive
• EAN: 6940408102835
• UPC: 887621057732

Installation & Mounting The compact and rugged design allows for flexible installation options with various accessories available including external BOP, connecting cables, filters, braking resistors, and shielding options to adapt to specific application requirements.

Quality & Compliance This product meets stringent quality standards and regulatory requirements, including compliance with RoHS directive for hazardous substances and WEEE regulations for electronic waste management. The converter is manufactured to Siemens' high-quality standards ensuring reliable operation in demanding industrial environments.
