Siemens Fuse element, live grip lugs, NH000, 10A
View on Siemens 📄 Datasheet
Siemens

Siemens Fuse element, live grip lugs, NH000, 10A Part number 3NA3803

EAN / Barcode 4001869056807
Product Type Control Panel
Product Class Knife blade fuse
ETIM Class Knife blade fuse
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Lv Hrc Fuse Element

The LV HRC fuse element provides reliable disconnection in the event of overload and short-circuit for effective personal, equipment, and line protection.

Technical details:

  • Model: NH000
  • In: 10 A
  • gG
  • Un AC: 500 V
  • Un DC: 250 V
  • Front indicator
  • Live grip lugs
  • Available sizes: 000, 00, 0, 1, 2, 3, 4, 4a
  • Versions with communication and metering function in size 2 from 80 A to 315 A

Customer benefits:

  • Effective personal, equipment, and line protection
  • Reliable disconnection in the event of overload and short-circuit
  • Available for selective system and line protection
  • SENTRON circuit protection devices - The safe choice, now made smarter

Technical Specifications

Compliance/StandardsIEC 60269, EN 60269-1, IEC 81346-2
country_of_originGreece
descriptionLV HRC fuse element, NH000, In: 10 A, gG, Un AC: 500 V, Un DC: 250 V, Front indicator, live grip lugs
Fuse construction type according to IEC 60269NH000
IP RatingIP20
IP Rating DetailedIP20 with connected conductors Breaking Capacity breaking capacity at AC according to IEC 60269 rated value 120 kA at DC with time constant

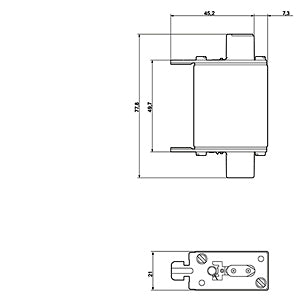

Part Depth (mm)62,00mm
Part Height (mm)84,00mm
Part Width (mm)65,00mm
Power loss at rated current1 W
Rated current10 A
Rated switching capacity AC120 kA
Rated switching capacity DC25 kA
Rated voltage AC500 V
Rated voltage DC250 V
Type of fuse status indicatorTop fuse status indicator
Utilization categorygG (cable protection/equipment protection)
Voltage typeAC/DC
Weight (g)0,130 Kg
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
