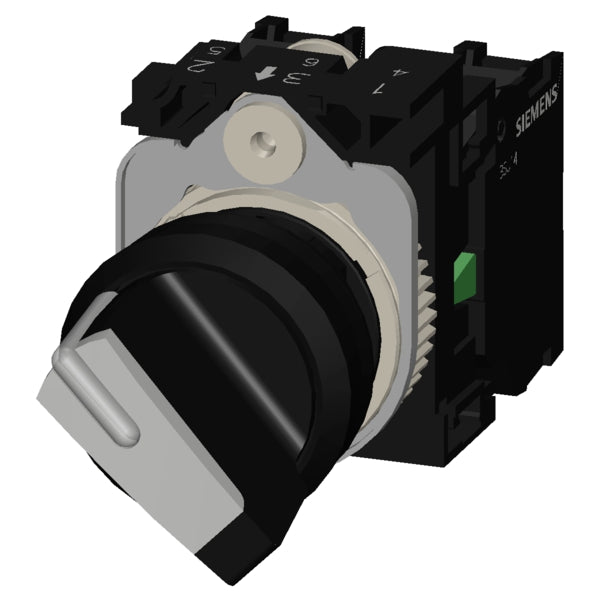

Siemens Selector switch, illuminable, round, plastic, white, 22mm Part number 3SU1100-2BF60-1MA0

Product Overview

Siemens Selector Switch, Illuminable, Round, Plastic, White, 22 mm (3SU1100-2BF60-1MA0) is a SIRIUS ACT selector switch designed for front-panel mounting in 22 mm openings. The actuator is white and made from high-quality industrial plastic, with a smooth round finish suitable for illuminated operation using an LED module (not included). It features a 2-position O-I switching function with a short-handle design, ideal for enabling or selecting machine states, modes, or control functions. Supplied as a complete unit including holder and contact block, it provides reliable performance for industrial control panels and operator interfaces.

Key Features

• Illuminable selector switch for control and operator panels
• 22 mm round mounting size
• White actuator front — durable plastic construction
• 2-position (O-I) operation, 90° latching movement
• Contact block included — 1 NO + 1 NC
• Screw terminals for secure and easy wiring
• Rated for industrial use up to 500 V
• Supports illumination via optional LED module
• Robust mechanical and electrical endurance for frequent operation

Technical Specifications

• Article Number: 3SU1100-2BF60-1MA0
• Product Type: Illuminable Selector Switch
• Switching Function: 2-position (O-I), maintained/latching
• Contact Configuration: 1 NO + 1 NC
• Actuator Design: Short-handle selector
• Actuator Colour: White
• Front Material: Plastic
• Mounting Hole: 22 mm round
• Rated Voltage: up to 500 V AC/DC
• Thermal Current Rating: 10 A
• Illumination Capability: Yes — LED module required separately
• Mechanical Life: approx. 1,000,000 operations
• Electrical Durability: approx. 10,000,000 cycles depending on load
• Connection Type: Screw terminal
• Installation: Front panel mounting with rear terminal access

Applications

Used for manual switching and mode selection in automation panels, machinery control stations, distribution boards and industrial operator interfaces. Suitable for start/stop functions, mode selection, equipment enabling, and light-assisted switching when used with an LED illumination module. Ideal for production lines, process control, general machinery and OEM panel builders.
