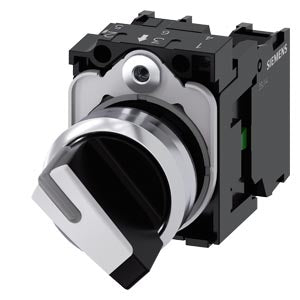

Siemens Illuminable selector switch, metal, white, 2 position, 22mm Part number 3SU1150-2BF60-1MA0

Product Overview

The Siemens SIRIUS ACT selector switch (SKU 3SU1150-2BF60-1MA0) is a 22 mm round, metal-shiny complete unit that is illuminable. It features two switch positions (O-I), a latching actuation at 90°, and comes with a holder and one normally-open contact module. It is designed for robust industrial control and operator-interface applications.

Key Features

• Illuminable selector switch with two positions (O-I) and latching mechanism
• 22 mm mounting diameter, round metal shiny front design
• Actuating angle: 90° (positions at 10:30 h / 13:30 h) with short handle version
• Includes holder and one NO contact module for streamlined installation
• High ingress protection on front: suitable for demanding environments when mounted correctly

Technical Specifications

• Product Series: Siemens SIRIUS ACT – Selector Switches
• Article Number: 3SU1150-2BF60-1MA0
• Number of Command Points: 1
• Design of the Actuating Element: Selector, short handle
• Switch Positions: 2 (O and I)
• Actuating Angle: 90°
• Outer Diameter of Actuating Element: ~32.3 mm
• Rated Insulation Voltage (Ui): 500 V AC
• Surge Voltage Withstand (Uimp): 6 kV
• Degree of Pollution: 3
• Protection Class (Front): IP66 / IP67 / IP69 / IP69K
• Protection Class (Terminals): IP20
• Mechanical Service Life: Approx. 1,000,000 operations
• Electrical Endurance: Approx. 10,000,000 operations
• Net Weight (Approx.): 0.0815 kg

Compliance & Certifications

• Complies with IEC/EN 60947-1 and IEC/EN 60947-5-1 standards for control-panel devices
• Designed for industrial operator-interface use and safe mounting with high-ingress protection
• RoHS-compliant and manufactured under Siemens industrial-automation quality standards

Applications

Ideal for machine-tool control panels, automation enclosures, industrial switchgear and operator interface assemblies where a robust, 22 mm, metal-finished, illuminable selector switch is required. This switch supports latching operation, two switch positions, and provides clear status indication via illumination for reliable control in demanding environments.
