Siemens Power contactor, AC-3e/AC-3, 3-pole, 5.5kW/400V, 12A
View on Siemens 📄 Datasheet
Siemens

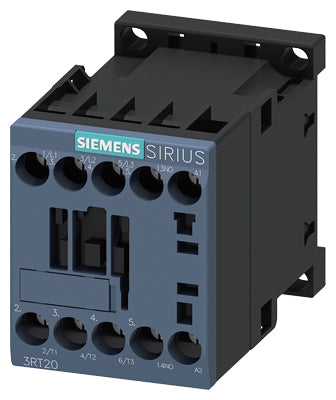

Siemens Power contactor, AC-3e/AC-3, 3-pole, 5.5kW/400V, 12A Part number 3RT2017-1AG61

EAN / Barcode 4011209842229
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with a compact design and high contact reliability.

Technical details:

  • Type: AC-3e/AC-3
  • Current: 12 A
  • Power: 5.5 kW / 400 V
  • Poles: 3-pole
  • Voltage: 100 V AC, 50 Hz / 100-110 V, 60 Hz
  • Auxiliary contacts: 1 NO
  • Connection: screw terminal
  • Size: S00
  • Standards: IEC and UL/CSA

Customer benefits:

  • Optimally coordinated products within the modular SIRIUS system.
  • Can be combined with various components in the load feeder.
  • Factory tested device combinations.
  • Integrated auxiliary switches reduce design complexity.
  • Front-panel terminals simplify wiring.
  • Climate-resistant and approved for worldwide use.
  • Available with spring-type terminals for fast and maintenance-free connection.
  • Comprehensive range of standardized accessories.
  • Link modules and function modules reduce wiring expenses.
  • Simple and efficient modular system.

Technical Specifications

Depth73 mm
Height58 mm
Modular versionYes
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz100 V
Rated control supply voltage AC 60 Hz110 V
Rated operation current Ie at AC-1, 400 V22 A
Rated operation current Ie at AC-3, 400 V12 A
Rated operation current Ie at AC-4, 400 V8.5 A
Rated operation power at AC-3, 400 V5.5 kW
Rated operation power NEMA5.8839904 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width45 mm
View complete specifications on Siemens
