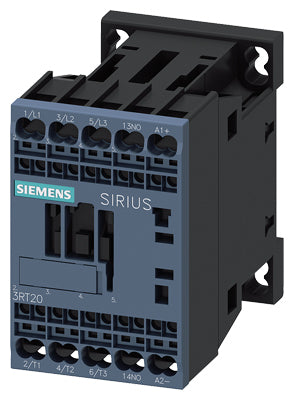

Siemens Power contactor, 3 pole, 1NO, size S00, 24VDC
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, 3 pole, 1NO, size S00, 24VDC Part number 3RT2016-2FB41

EAN / Barcode 4011209847132
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with integrated features for efficient control and reliability.

Technical details:

  • Type: AC-3e/AC-3
  • Rated current: 9 A
  • Rated power: 4 kW / 400 V
  • Poles: 3-pole
  • Control voltage: 24 V DC
  • Integrated diode
  • Auxiliary contacts: 1 NO
  • Terminal type: spring-loaded terminal
  • Size: S00

Customer benefits:

  • Part of the modular SIRIUS system with optimized product coordination.
  • High contact reliability in a compact design.
  • Factory tested device combinations available.
  • Best connection to automation level for various applications (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches simplify design complexity.
  • Front-panel terminals enhance wiring simplicity.
  • Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
  • IE3/IE4-ready with various size and performance options.
  • Maintenance-free and vibration-proof connection with spring-type terminals.
  • Standardized accessories for all sizes, reducing wiring efforts.
  • Efficient and updated modular system for simple integration.

Technical Specifications

Depth73 mm
Height70 mm
Modular versionYes
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage DC24 V
Rated operation current Ie at AC-1, 400 V22 A
Rated operation current Ie at AC-3, 400 V9 A
Rated operation current Ie at AC-4, 400 V8.5 A
Rated operation power at AC-3, 400 V4 kW
Rated operation power NEMA3.677494 kW
Type of electrical connection of main circuitSpring clamp connection
Voltage type for actuatingDC
Width45 mm
View complete specifications on Siemens
