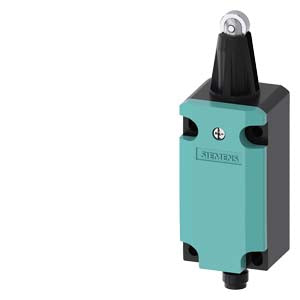

Siemens Position switch with roller plunger, M12, 1NO+1NC, 5-pole Part number 3SE5114-0CD02-1AC5

Product Overview

Position switch with roller plunger featuring metal enclosure 40mm according to EN 50041, 1 NO/1 NC quick action contacts with M12 plug, 5-pole, and fixed pin assignment configuration. This professional-grade SIRIUS 3SE5114 mechanical position switch provides reliable switching performance with pre-wired M12 connector for simplified installation and maintenance in industrial automation applications.

Technical Specifications

Article Number: 3SE5114-0CD02-1AC5

Design Characteristics:

• Switch type: Position switch with roller plunger
• Enclosure: Metal enclosure 40mm
• Contact configuration: 1 NO/1 NC quick action contacts
• Connector type: M12 plug, 5-pole
• Pin assignment: Fixed (Pin1=21, Pin2=22, Pin3=13, Pin4=14, Pin5=PE)
• Series: SIRIUS 3SE5114

Design Features:

• Metal enclosure construction for durability
• Roller plunger actuator for precise positioning
• Pre-wired M12 connector for easy installation
• Quick action contacts for snap operation
• Fixed pin assignment for standardized connections
• 5-pole M12 connector configuration
• Professional industrial design
• Modular construction for versatile applications

Application Areas:

• Industrial automation systems
• Position sensing of machine parts
• Position monitoring of protection equipment
• Manufacturing process control
• Machine control systems
• Automated production lines
• Equipment positioning systems

Electrical Specifications:

• Pin 1: Contact 21
• Pin 2: Contact 22
• Pin 3: Contact 13
• Pin 4: Contact 14
• Pin 5: Protective Earth (PE)

Physical Properties:

• Net weight: 0.360 kg
• Enclosure width: 40mm
• Connector: M12, 5-pole
• Packaging dimensions: 67.00 x 148.00 x 43.00 mm
• Packaging quantity: 1 piece
• Country of origin: Germany

Product Identifiers:

• EAN: 4047621019475
• UPC: 804766722721

Compliance & Environmental:

• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: Yes
• REACH Regulation: Contains lead in concentrations higher than 0.1% weight by weight. Based on current information, this substance does not pose risk when used as intended.

Standards Compliance:

• EN 50041 compliant
• EN 50047 compliant
• IEC certified
• UL certified
• CSA certified
• CE marked
