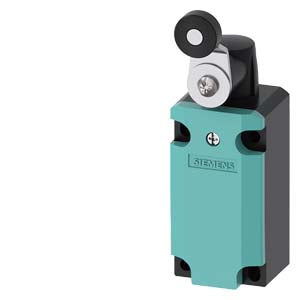

Siemens Position switch, metal enclosure, 1NO + 1NC
View on Siemens 📄 Datasheet
Siemens

Siemens Position switch, metal enclosure, 1NO + 1NC Part number 3SE5112-0BH01

EAN / Barcode 4011209691988
Product Type Field Sensing & Connectivity
Product Class End switch
ETIM Class End switch
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Product Overview

Position switch featuring metal enclosure 40mm with twist lever according to EN 50041, device connection 1 x (M20 x 1.5), and 1 NO/1 NC slow-action contacts. This professional-grade SIRIUS 3SE5 mechanical position switch includes rotary actuator right/left adjustable configuration with metal lever 27mm long and plastic roller 19mm, designed for position sensing of machine parts and position monitoring of protection equipment.

Technical Specifications

Article Number: 3SE5112-0BH01

Design Characteristics:

  • Switch type: Position switch
  • Enclosure: Metal enclosure 40mm
  • Actuator type: Twist lever with rotary actuator
  • Adjustment: Right/left adjustable

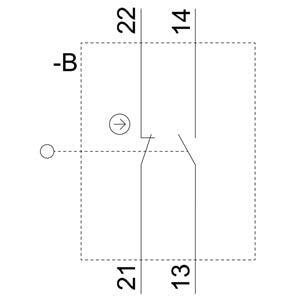

  • Contact configuration: 1 NO/1 NC slow-action contacts
  • Contact rating: 10A
  • Device connection: 1 x (M20 x 1.5)
  • Series: SIRIUS 3SE5

Design Features:

  • Metal enclosure construction for durability
  • Twist lever with rotary actuator mechanism
  • Metal lever 27mm long with plastic roller 19mm
  • Right/left adjustable configuration
  • Slow-action contacts for reliable operation
  • LED status indication capability
  • Quick-connect technology for reduced connection time
  • Modular design for versatile applications
  • Wide variety of plug-in connectors and rollers

Application Areas:

  • Position sensing of machine parts
  • Position monitoring of protection equipment
  • Industrial automation systems
  • Manufacturing process control
  • Machine control systems
  • Safety circuit applications
  • Equipment positioning systems

Physical Properties:

  • Net weight: 0.349 kg
  • Enclosure width: 40mm
  • Lever length: 27mm
  • Roller diameter: 19mm
  • Packaging dimensions: 43.00 x 67.00 x 148.00 mm
  • Packaging quantity: 1 piece
  • Country of origin: Germany

Product Identifiers:

  • EAN: 4011209691988

Compliance & Environmental:

  • RoHS Compliance: Since 01.07.2006
  • WEEE Take-Back Obligation: Yes
  • REACH Regulation: No substances of very high concern identified

Standards Compliance:

  • EN 50041 compliant
  • EN 50047 compliant
  • IEC certified
  • UL certified
  • CSA certified
  • CE marked
  • PL e safety requirements capable
  • SIL 3 safety requirements capable

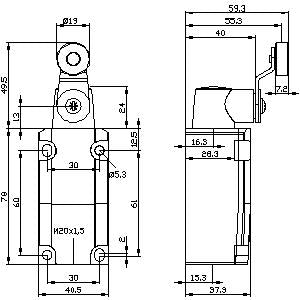

Download existing graphical data for this product:


Technical Specifications

Alignment of the control elementRoller cam straight
Ambient temperature during operating85 °C
Coating housingLacquered
Compliance/StandardsIEC 60068-2, EN 50041, IEC 81346-2
Construction type housingCuboid
country_of_originGermany
Degree of protection (IP)IP66/IP67
Degree of protection (NEMA)12
descriptionPosition switch Metal enclosure 40 mm Twist lever, according to EN 50041 Device connection 1 x (M20 x 1.5) 1 NO/1 NC slow-action contacts Rotary actuator right/left adjustable, Metal lever 27 mm long and plastic roller 19 mm
Forced openingYes
Height of sensor59.3 mm
Housing materialMetal
Length of sensor127.5 mm
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Number of safety auxiliary contacts1
Part Depth (mm)148,00mm
Part Height (mm)67,00mm
Part Width (mm)43,00mm
Rated operation current Ie at AC-15, 125 V6 A
Rated operation current Ie at AC-15, 24 V6 A
Rated operation current Ie at DC-13, 125 V0.55 A
Rated operation current Ie at DC-13, 24 V3 A
Suitable for safety functionsYes
Switching functionSlow-action switch
Type of control elementRotary lever
Type of electric connectionOther
Weight (g)0,330 Kg
Width sensor40 mm
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples

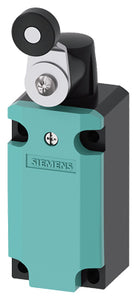

More in Siemens Field Sensors
