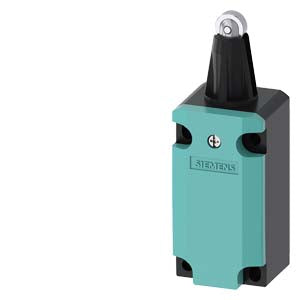

Siemens Position switch, metal enclosure, 1NO + 1NC, 13mm
View on Siemens 📄 Datasheet
Siemens

Siemens Position switch, metal enclosure, 1NO + 1NC, 13mm Part number 3SE5112-0CD02

EAN / Barcode 4011209692152
Product Type Field Sensing & Connectivity
Product Class End switch
ETIM Class End switch
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Product Overview

Position switch featuring metal enclosure 40mm according to EN 50041, device connection 1x (M20 x 1.5), and 1 NO/1 NC quick action contacts with roller plunger featuring 3mm overtravel and stainless steel roller 13mm. This professional-grade SIRIUS 3SE5 mechanical position switch provides simultaneous switching of all contacts regardless of actuator speed, designed for position sensing of machine parts and position monitoring of protection equipment.

Technical Specifications

Article Number: 3SE5112-0CD02

Design Characteristics:

  • Switch type: Position switch
  • Enclosure: Metal enclosure 40mm
  • Actuator type: Roller plunger

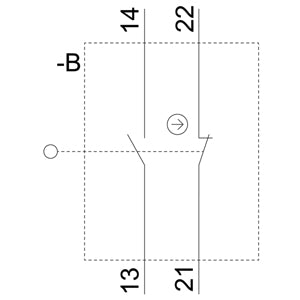

  • Contact configuration: 1 NO/1 NC quick action contacts
  • Overtravel: 3mm
  • Roller material: Stainless steel
  • Roller diameter: 13mm
  • Device connection: 1x (M20 x 1.5)
  • Series: SIRIUS 3SE5

Design Features:

  • Metal enclosure construction for durability
  • Roller plunger actuator with 3mm overtravel
  • Stainless steel roller for corrosion resistance
  • Quick action contacts for snap operation
  • Simultaneous switching of all contacts
  • Rotatable actuator in 22.5° increments
  • LED status indication capability
  • Quick-connect technology for reduced connection time
  • Modular design for versatile applications

Application Areas:

  • Position sensing of machine parts
  • Position monitoring of protection equipment
  • Industrial automation systems
  • Manufacturing process control
  • Lateral actuation applications
  • Applications requiring long overtravel
  • Plant and building automation systems

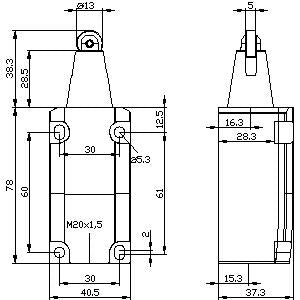

Physical Properties:

  • Net weight: 0.379 kg
  • Enclosure width: 40mm
  • Roller diameter: 13mm
  • Overtravel: 3mm
  • Packaging dimensions: 43.00 x 67.00 x 127.00 mm
  • Packaging quantity: 1 piece
  • Country of origin: Germany

Product Identifiers:

  • EAN: 4011209692152

Compliance & Environmental:

  • RoHS Compliance: Since 01.07.2006
  • WEEE Take-Back Obligation: Yes
  • REACH Regulation: No substances of very high concern identified

Standards Compliance:

  • EN 50041 compliant
  • EN 50047 compliant
  • CENELEC certified
  • IEC certified
  • UL certified
  • CSA certified
  • CE marked
  • PL e safety requirements capable
  • SIL 3 safety requirements capable

Download existing graphical data for this product:

Technical Specifications

Alignment of the control elementRoller cam straight
Ambient temperature during operating85 °C
Coating housingLacquered
Construction type housingCuboid
Degree of protection (IP)IP66/IP67
Degree of protection (NEMA)12
Forced openingYes
Height of sensor37.3 mm
Housing materialMetal
Length of sensor116.3 mm
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Number of safety auxiliary contacts1
Rated operation current Ie at AC-15, 125 V6 A
Rated operation current Ie at AC-15, 24 V6 A
Rated operation current Ie at DC-13, 125 V0.55 A
Rated operation current Ie at DC-13, 24 V3 A
Suitable for safety functionsYes
Switching functionQuick-break switch
Type of control elementRoller cam
Type of electric connectionOther
Width sensor40 mm
Part Width43 mmmm
Part Height49 mmmm
Part Depth127 mmmm
Weight379 gg
Country of OriginGermany
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples

Compatible Accessories & Components

Accessories

Siemens Plug connector socket, 5-pole, 4A

Siemens Plug connector socket, 5-pole, 4A

3SY3128
