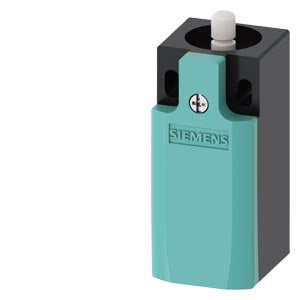

Siemens Limit switch without actuator head, 1NO + 2NC Part number 3SE5232-0KC05

Product Overview

The 3SE5232-0KC05 is a SIRIUS mechanical position switch featuring a plastic enclosure according to DIN EN 50047, 31 mm device connection 1 x (M20 x 1.5) 1 NO/2 NC slow-action contacts rounded plunger, form B. This modular position switch is designed for reliable position sensing of machine parts and position monitoring of protection equipment in industrial applications.

Key Features & Specifications

• Enclosure: 31 mm wide plastic enclosure (Ultramid A3X2G7)

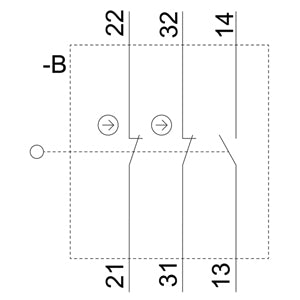

• Contact Configuration: 1 NO/2 NC slow-action contacts
• Actuator: Rounded plunger, Form B
• Cable Entry: 1x (M20x1.5)
• Protection Rating: IP65
• Operating Temperature: -25°C to +85°C
• Mounting Position: Any

Technical Data

• Rated Operational Voltage: 400V AC (over 300V AC same potential only)
• Rated Insulation Voltage: 415V
• Conventional Thermal Current: 10A (2P) & 6A (3P)
• Mechanical Endurance: 15 × 10⁶ operating cycles

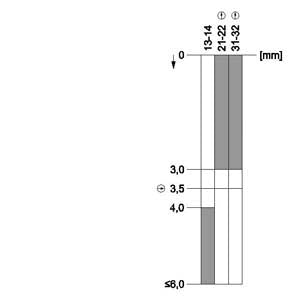

• Switching Accuracy: 0.05mm for repeated switching
• Net Weight: 0.070 kg

Contact Performance

• AC Operation: 6A at 24V, 6A at 120V, 3A at 240V
• DC Operation: 3A at 24V, 0.55A at 125V, 0.27A at 250V
• Short-Circuit Protection: 6A with DIAZED fuse links

Standards & Compliance

• Standards: IEC 60947-5-1, EN 60947-5-1
• Switching Points: According to EN 50047
• Mounting: According to EN 50047
• Country of Origin: Germany
• RoHS Compliance: Since: 01.07.2006

Applications

The 3SE5 limit switches are ideally suited for control of machine tools, elevators, cranes, conveyors, gates, doors and various other applications. The modular design allows for easy installation and replacement of actuator heads with standardized interfaces.

Package Information

• EAN: 4011209694446
• Packaging Dimensions: 45.00 x 42.00 x 97.00 mm
• Packaging Quantity: 1 piece

Download existing graphical data for this product:

• Product Catalog - 3SE5 Position Switches
• Technical Data Sheet
• Product Details - Industry Mall
