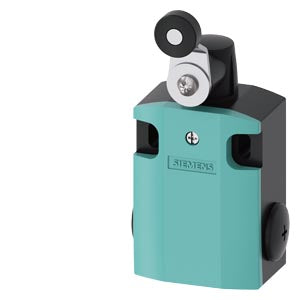

Siemens Position switch, metal enclosure, 3 x M20, 1NO+1NC Part number 3SE5122-0CH01

Product Overview

Position switch featuring metal enclosure 56mm wide with device connection 3x (M20x 1.5), 1 NO/1 NC quick action contacts, and rotary actuator right/left adjustable with metal lever 27mm long and plastic roller 19mm. This professional-grade SIRIUS 3SE5 mechanical position switch provides reliable switching performance and versatile mounting options for position sensing of machine parts and position monitoring of protection equipment.

Technical Specifications

Article Number: 3SE5122-0CH01

Design Characteristics:

• Switch type: Position switch
• Enclosure: Metal enclosure 56mm wide
• Actuator type: Rotary actuator right/left adjustable
• Contact configuration: 1 NO/1 NC quick action contacts
• Device connections: 3x (M20x 1.5)
• Lever length: 27mm metal lever
• Roller diameter: 19mm plastic roller
• Series: SIRIUS 3SE5

Design Features:

• Metal enclosure construction for durability
• 56mm wide enclosure for enhanced connectivity
• Triple M20x1.5 cable entry points
• Right/left adjustable rotary actuator
• Quick action contacts for snap operation
• Metal lever with plastic roller for reduced wear
• LED status indication capability
• Quick-connect technology for reduced connection time
• Modular design for versatile applications

Application Areas:

• Position sensing of machine parts
• Position monitoring of protection equipment
• Industrial automation systems
• Manufacturing process control
• Machine control systems
• Heavy-duty positioning applications
• Equipment requiring multiple cable entries

Electrical Specifications:

• Rated operational current at AC-15, 24V: 6A
• Rated operational current at AC-15, 125V: 6A
• Rated operational current at AC-15, 230V: 6A
• Rated operational current at DC-13, 24V: 3A
• Rated operational current at DC-13, 125V: 0.55A
• Rated operational current at DC-13, 230V: 0.27A

Physical Properties:

• Net weight: 0.413 kg
• Enclosure width: 56mm
• Sensor height: 59.3mm
• Sensor length: 127.5mm
• Lever length: 27mm
• Roller diameter: 19mm
• Packaging dimensions: 67.00 x 71.50 x 136.00 mm
• Packaging quantity: 1 piece
• Country of origin: Germany

Product Identifiers:

• EAN: 4011209693487

Compliance & Environmental:

• Protection rating: IP66/IP67
• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: Yes
• REACH Regulation: Contains Imidazolidine-2-thione (2-imidazoline-2-thiol) in concentrations higher than 0.1% weight by weight. Based on current information, this substance does not pose risk when used as intended.

Standards Compliance:

• EN 50047 compliant
• EN 50041 compliant
• IEC certified
• UL certified
• CSA certified
• CE marked
• PL e safety requirements capable
• SIL 3 safety requirements capable
