Product Overview

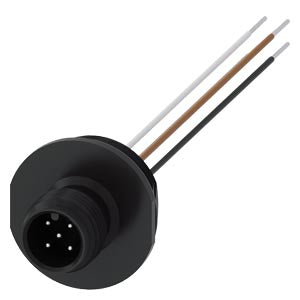

Accessory for position switch connector plug (5-pole), M12, for M20 x 1.5 for 125 V, 4 A on Pin 5 a yellow/green cable for PE

Article Number: 3SY3128

Key Features:

• Application: Essential accessory for position switch systems
• Connector Type: 5-pole M12 connector plug
• Thread Compatibility: M20 x 1.5 threading
• Electrical Rating: 125 V, 4 A capacity on Pin 5
• Safety Feature: Yellow/green cable for protective earth (PE) connection
• Professional Grade: Industrial-quality connector for reliable position switch connectivity
• Installation: Direct connection accessory for position switch assemblies

Technical Specifications:

• Connector Configuration: 5-pole M12 connector plug
• Thread Size: M20 x 1.5
• Voltage Rating: 125 V
• Current Rating: 4 A on Pin 5
• Protective Earth: Yellow/green PE cable included
• Net Weight: 0.022 lb (0.010 kg)
• Packaging Dimensions: 2.874 x 7.323 x 0.945 inches (73.0 x 186.0 x 24.0 mm)
• Quantity Unit: 1 Piece
• EAN: 4011209591950
• Country of Origin: Germany

Product Benefits:

• Reliable Connectivity: M12 connector standard ensures secure, industrial-grade electrical connections
• Safety Compliance: Integrated yellow/green PE cable provides proper protective earth connection
• Professional Installation: M20 x 1.5 threading ensures secure mechanical connection to position switch assemblies
• Industrial Rating: 125V, 4A electrical capacity suitable for demanding industrial applications
• Quality Construction: German engineering ensures consistent performance and long service life
• Standard Compatibility: M12 connector format provides compatibility with industrial automation systems
• Easy Integration: Direct plug-in connection simplifies position switch system installation
• Maintenance Ready: Essential accessory for position switch maintenance and installation programs
• Electrical Safety: Proper PE connection ensures electrical safety in industrial environments
• Durable Design: Built for reliable operation in demanding industrial conditions

Applications: Essential connectivity accessory for position switch systems in industrial automation, manufacturing equipment, conveyor systems, and machinery where reliable electrical connection and safety grounding are critical. Perfect for connecting position switches to control systems, PLCs, and automation networks in manufacturing, process control, material handling, and safety system applications.

Electrical Features:

• 5-Pole Configuration: Comprehensive connectivity for complex position switch signals
• 125V Rating: Suitable for standard industrial voltage applications
• 4A Current Capacity: Adequate current handling for position switch applications
• PE Connection: Dedicated protective earth connection for electrical safety
• M12 Standard: Industry-standard connector format for reliable connections

Installation Features:

• M20 x 1.5 Threading: Standard industrial threading for secure mechanical connection
• Plug Configuration: Simple plug-in installation for quick system integration
• Cable Integration: Yellow/green PE cable eliminates need for separate grounding connections
• Professional Connection: Ensures reliable electrical interface for position switch systems

Safety Features:

• Protective Earth: Yellow/green PE cable provides essential safety grounding
• Industrial Rating: Electrical specifications suitable for industrial safety applications
• Secure Connection: M12 connector ensures reliable electrical contact under industrial conditions
• Compliance Standards: Built to meet industrial electrical safety requirements

Compatibility:

• Position Switch Systems: Designed specifically for position switch connectivity applications
• M20 Threading: Compatible with standard M20 x 1.5 threaded connections
• Industrial Networks: M12 connector format compatible with industrial automation systems
• Control Systems: Suitable for connection to PLCs, controllers, and automation equipment

System Integration:

• Automation Systems: Enables position switch integration with industrial control systems
• Safety Networks: Facilitates connection to safety-related control systems
• Data Communication: Provides reliable signal transmission from position switches
• Control Interface: Essential component for position switch to controller communication

Material Properties:

• Industrial Grade: Built for reliable performance in demanding industrial environments
• Electrical Insulation: Proper insulation for safe electrical operation
• Mechanical Durability: Robust construction withstands industrial installation conditions
• Corrosion Resistance: Suitable for typical industrial environment exposures

Usage Notes:

• Single piece packaging for individual position switch connections
• Professional installation recommended for optimal electrical safety and performance
• Essential component for position switch system installation and maintenance
• Suitable for various industrial position detection and control applications

Quality & Design:

• German Engineering: Precision manufacturing ensures consistent electrical performance and reliability
• Industrial Standards: Built to meet demanding industrial connectivity requirements
• Professional Grade: Quality construction appropriate for industrial automation applications
• Reliable Performance: Consistent electrical connectivity across multiple installations

Compliance & Certifications:

• RoHS Compliant: Since 07/01/2006
• WEEE Directive: Take-back obligation applies
• Export Control: AL: N / ECCN: N
• Returnable Product: Yes

REACH Regulation Notice: This product contains substances from the candidate list in concentrations higher than 0.1% w/w:

• Lead

Based on current information, these substances do not pose risk when used as intended. Please refer to product documentation for complete details.

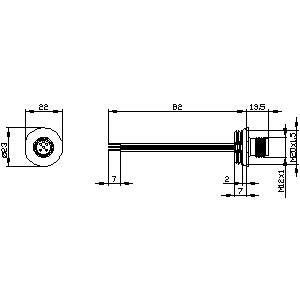

Download existing graphical data for this product:

• Product Datasheet
• Additional Product Information
