Siemens Pivoting lever drive for position switch 3SE52/3SF12 Part number 3SE5000-0AK00

Product Overview

Pivoting lever drive for position switch 3SE52/3SF12 designed for 31/50mm enclosure widths with switch points according to EN 50047. This professional-grade actuator head features configurable switching direction (left/right, left only, or right only) with delivery state of right/left configuration, designed for position sensing of machine parts and protection equipment in extreme environmental conditions.

Technical Specifications

Article Number: 3SE5000-0AK00

Design Characteristics:

• Application: Position switch 3SE52/3SF12
• Enclosure width: 31/50 mm
• Switch points: According to EN 50047
• Switching direction: Left/right or left only or right only
• Delivery state: Right/left
• Operating temperature: -25°C to +85°C
• Operating torque: 0.25 N-m
• Series: SIRIUS 3SE5

Design Features:

• Pivoting lever drive mechanism
• Configurable switching direction
• Functional at -40°C for extreme conditions
• Plastic construction for durability
• High degree of protection rating
• Increased corrosion protection
• Shock and impact tested
• Worldwide approvals (IEC, UL)
• Lever must be ordered separately

Application Areas:

• Position sensing of machine parts
• Position monitoring of protection equipment
• Wind energy plants
• Food and beverage industry
• Railway applications
• Extreme environmental conditions
• Industrial automation systems
• Safety circuit applications

Physical Properties:

• Net weight: 0.031 kg

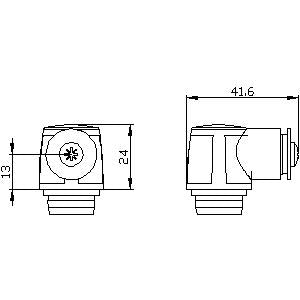

• Length: 41.6 mm
• Packaging dimensions: 38.00 x 45.00 x 23.00 mm
• Material: Plastic construction
• Packaging quantity: 1 piece
• Country of origin: Germany

Product Identifiers:

• EAN: 4011209696037

Compliance & Environmental:

• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: No
• REACH Regulation: No substances of very high concern identified

Standards Compliance:

• EN 50047 compliant
• IEC certified
• UL certified
• CSA certified
• CE marked

Download existing graphical data for this product:

• Technical Datasheet (PDF)
• 3D CAD Models
• Product Details - Industry Mall
