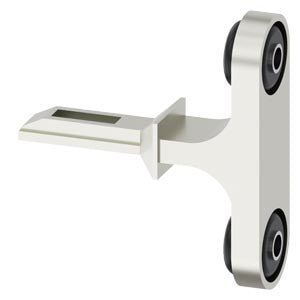

Siemens Separate actuator, with vertical fixing
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
Separate actuator with vertical fixing for position switch with tumbler 3SE5312/3SE5322 and AS-i 3SF13, and position switch with separate actuator 3SE51/3SE52 and AS-i 3SF11/3SF12. This professional-grade coded actuator provides reliable safety interlock functionality with vertical mounting configuration, designed for position sensing of machine parts and position monitoring of protection equipment.
Technical Specifications
Article Number: 3SE5000-0AV02
Design Characteristics:
- Actuator type: Separate actuator with vertical fixing
- Compatibility: 3SE5312/3SE5322 with tumbler, AS-i 3SF13
- Additional compatibility: 3SE51/3SE52 separate actuator, AS-i 3SF11/3SF12
- Mounting type: Vertical fixing with threaded mount
- Length: 53mm
- Coded key functionality: Yes
- Operating temperature: -25°C to +85°C
Design Features:
- Vertical fixing configuration for space-efficient mounting
- Coded key design for enhanced security
- Threaded mounting system for secure installation
- LED status indication capability
- Quick-connect technology for reduced connection time
- Modular design for versatile applications
- Multiple mechanical coding to prevent tampering
- Compatible with plant and building automation systems
Application Areas:
- Safety position switches
- Interlock circuit applications
- Position sensing of machine parts
- Position monitoring of protection equipment
- Industrial automation systems
- Plant and building automation systems
- Machine safety circuits
- Equipment protection monitoring

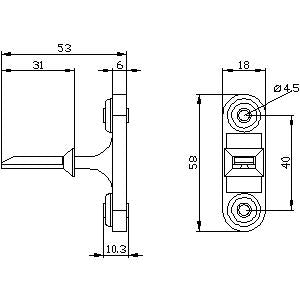

Physical Properties:
- Net weight: 0.064 kg
- Height: 58 mm
- Width: 53 mm
- Depth: 18 mm
- Length: 53 mm
- Packaging dimensions: 55.00 x 58.00 x 21.00 mm
- Packaging quantity: 1 piece
- Country of origin: Germany
Product Identifiers:
- EAN: 4011209691117
Compliance & Environmental:
- RoHS Compliance: Since 01.07.2006
- WEEE Take-Back Obligation: No
- REACH Regulation: No substances of very high concern identified
Standards Compliance:
- EN 50047 compliant
- EN 50041 compliant
- IEC certified
- UL certified
- CSA certified
- CE marked
Download existing graphical data for this product:
Additional Information
| Compliance/Standards | IEC 60068-2, IEC 81346-2 |
| Part Width (mm) | 55,00mm |
| Part Height (mm) | 58,00mm |
| Part Depth (mm) | 21,00mm |
| Weight (g) | 0,064 Kg |
| description | Separate actuator, with vertical fixing for position switch with tumbler 3SE5312/3SE5322 and AS-i 3SF13 and position switch with separate actuator 3SE51/3SE52 and AS-i 3SF11/3SF12 |
| country_of_origin | Germany |
