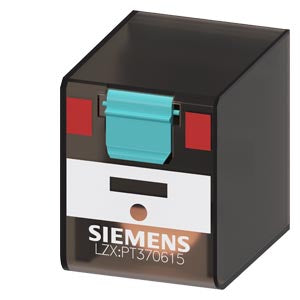

Siemens Plug-in relay, 3 changeover contacts, 22.5mm width, 115VAC, 10A Part number LZX:PT370615

Product Overview

The Siemens SIRIUS plug-in relay (SKU: LZX:PT370615) features three change-over (3 CO) contacts and is designed for use with LZS plug-in sockets. With a coil rated at 115 V AC and contact rating up to 10 A, it is a compact switching module ideal for control and automation applications.

Key Features

• 3 change-over contacts (3 CO) per relay unit
• Rated coil voltage: 115 V AC (50/60 Hz)
• Rated switching current (main circuit): 10 A
• Width: 22.5 mm—designed for compact plug-in socket installation
• Operating ambient temperature: –40 °C to +70 °C
• Mechanical service life typical: 20,000,000 operations

Technical Specifications

• Product Type: Plug-in relay, SIRIUS LZX series
• Article Number: LZX:PT370615
• Coil Voltage (AC): 115 V (50/60 Hz)
• Thermal Current (I_th): 10 A
• Contact Material: AgNi 90/10
• Ambient Temperature (Operation): –40 °C … +70 °C
• Width: 22.5 mm
• Height: 28 mm
• Depth: 35 mm

Compliance & Certifications

• Complies with IEC 81346-2 reference code K
• Designed for industrial applications with standard mounting conditions

Applications

Ideal for use in machine control panels, automation systems and switching modules where compact, reliable plug-in relay functionality is required. The LZX:PT370615 meets demanding operational cycles and offers high durability in control circuits.
