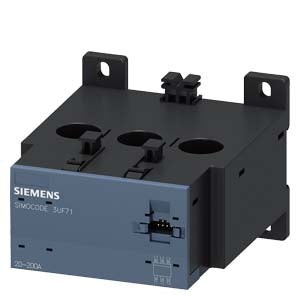

Siemens Current measuring module, width 120mm, 20 - 200A Part number 3UF7103-1AA00-0

Product Overview

Current measuring module designed for precise motor current measurement in industrial applications. This module features a set current range of 20-200 A with an overall width of 120 mm and utilizes straight-through transformer technology for accurate current monitoring.

Key Features

• Current Range: 20-200 A set current capability
• Transformer Type: Straight-through transformer design
• Dimensions: 120 mm overall width, compact form factor
• Integration: Compatible with SIMOCODE pro motor management systems
• Connection: System interface connectivity for electrical connection to basic units

Technical Specifications

• Rated Operation Frequency: 50 Hz
• Rated Voltage: 110 V AC at 50/60 Hz
• Net Weight: 0.645 kg
• Packaging Dimensions: 135.00 x 145.50 x 171.50 mm
• Country of Origin: Germany
• Product Class: Standard stock item

Applications

This current measuring module is specifically designed for use with SIMOCODE pro C and SIMOCODE pro V motor management systems. The module determines motor current in the main circuit and connects electrically to the basic unit via connection cables through system interfaces. Depending on the application size, the basic unit and current measuring module can be mounted either as a single unit or separately.

Compliance & Certifications

• RoHS Compliant: Since July 1, 2006
• WEEE Directive: Take-back obligation compliant
• Export Control: AL: N / ECCN: N
• EAN: 4011209624603
• UPC: 754554901800

Environmental Information

Contains lead monoxide (lead oxide) in concentrations higher than 0.1% weight by weight as per REACH Article 33 requirements. Based on current information, these substances do not pose risk when used as intended, including proper disposal. Refer to product documentation for additional details.

Download existing graphical data for this product:

• Technical Datasheet (PDF)
• SIMOCODE pro Manual Collection
