Siemens Plug-in relay, 3 changeover contacts, 24VDC Siemens
📄 Datasheet
Siemens

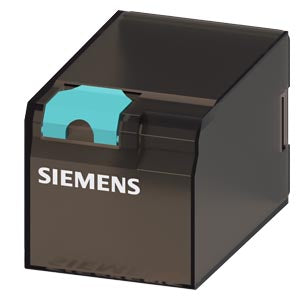

Siemens Plug-in relay, 3 changeover contacts, 24VDC Part number LZX:MT323024

EAN / Barcode - None -
Product Type Control Panel
Product Class Switching relay
In Stock
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Plug-in relay, 3 changeover contacts Relay with LED 28 mm, 24 V DC Plug-in relay SIRIUS LZX as a single module in combination with LZS plug-in base for galvanic isolation, contact multiplication, for switching small loads and as a means of switching potential. The plug-in relays allow flexibility in the design of the device as a whole and can be replaced easily. Single modules are available in the designs RT, PT and MT, as well as in various coil voltages. SIRIUS relays - one range for every application.

Technical Specifications

Complete with socketNo
Depth69 mm
Drive, polarizationPolarized
Drive, switching attitudeMono stable
Height36.5 mm
Material contactSilver nickel (AgNi)
Number of contacts as change-over contact3
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Relay technology category according to IEC 61810-7RT I
Type of switch contactOther
Voltage type (operating voltage)DC
Voltage type for actuatingDC
Width35.5 mm
With detachable clampsNo
With forced-guided contactsNo
