Siemens Plug in relay for LZS sockets, 4 c/o, 6A Siemens
📄 Datasheet
Siemens

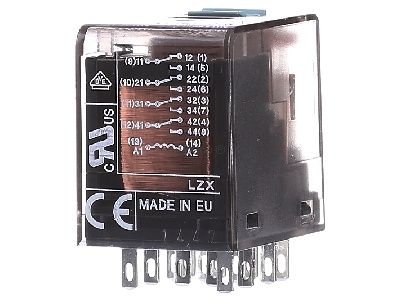

Siemens Plug in relay for LZS sockets, 4 c/o, 6A Part number LZX:PT570730

EAN / Barcode 4011209568655
Product Type Control Panel
Product Class Switching relay
In Stock
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Plug-in relay, 4 changeover contacts 230 V AC, 6 A, Width 22.5 mm for LZS sockets Plug-in relay SIRIUS LZX as a single module in combination with LZS plug-in base for galvanic isolation, contact multiplication, for switching small loads and as a means of switching potential. The plug-in relays allow flexibility in the design of the device as a whole and can be replaced easily. Single modules are available in the designs RT, PT and MT, as well as in various coil voltages. SIRIUS relays - one range for every application.

Technical Specifications

Siemens Plug In Power Relay, 230V ac Coil, 6A Switching Current, 4PDT

Mfr. Part No.: LZX:PT570730

Product Details

Siemens LZX Series Power Relay, 4PDT Contact Configuration, 6A Switching Current - LZX:PT570730

This power relay serves a variety of automation and control applications. With a coil voltage of 230V AC, it operates effectively in industrial settings. Featuring a 4PDT configuration, this relay offers multiple switching capabilities, making it a key component for electrical and mechanical systems. It is built to endure challenging conditions, merging functionality with durability for high-performance tasks in the industrial sector.

Features & Benefits

  • 4PDT contact configuration enables diverse switching options
  • Plug-in design allows for straightforward installation and maintenance
  • Uses AgNi contact material for improved durability
  • Screw terminal type ensures secure connections

Applications

  • Applied in automation processes that require dependable switching
  • Suitable for control panels within industrial environments
  • Utilised in machinery needing effective relay solutions
  • Extensively used in electrical distribution systems
  • Ideal for applications that require robust contact materials

Technical Specifications

Attribute Value
Coil Voltage 230V ac
Contact Configuration 4PDT
Mounting Type Plug In
Switching Current 6A
Number of Poles 4
Latching No
Terminal Type Screw
Maximum Switching Voltage AC 230V
Maximum Switching Voltage DC 24V dc
Length 22.5mm
Maximum Operating Temperature +70°C
Standards Met CE, EAC
Contact Material Silver Alloy
Height 28mm
Life 20000000 Cycles
Depth 35mm
Minimum Operating Temperature -40°C
Series LZX
Width 22.5mm
Dimensions 28 x 22.5 x 35mm
Application Power
