Siemens Plug-in relay, 3 changeover contacts, 24VDC, 10A Siemens
View on Siemens 📄 Datasheet
Siemens

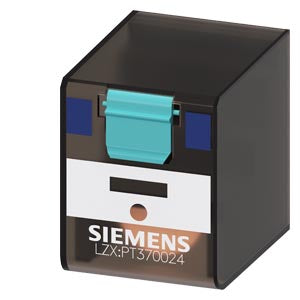

Siemens Plug-in relay, 3 changeover contacts, 24VDC, 10A

SKU / Article No. LZX:PT370024
Product Type Control Panel
Product Class Switching relay
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Plug-in relay, 3 changeover contacts 24 V DC, 10 A, Width 22.5 mm for LZS sockets Plug-in relay SIRIUS LZX as a single module in combination with LZS plug-in base for galvanic isolation, contact multiplication, for switching small loads and as a means of switching potential. The plug-in relays allow flexibility in the design of the device as a whole and can be replaced easily. Single modules are available in the designs RT, PT and MT, as well as in various coil voltages. SIRIUS relays - one range for every application.

Technical Specifications

Siemens Plug In Power Relay, 24V dc Coil, 10A Switching Current, 3PDT

Mfr. Part No.: LZX:PT370024

Product Details

Coil Voltage: 24V dc

Contact Configuration: 3PDT

Mounting Type: Plug In

Switching Current: 10A

Latching: No

Coil Power: 741mW

Contact Material: Silver Alloy

Standards Met: CE

Minimum Operating Temperature: -40°C

Maximum Operating Temperature: +70°C

Dimensions: 28 x 22.5 x 35mm

Life: 180000 cycles

Features & Benefits

  • Low coil power consumption of 741 mW enhances efficiency
  • High-temperature operation range up to +70°C promotes durability
  • Contact material of AgNi reduces wear
  • Electrical endurance rated for 180,000 cycles supports longevity
  • Versatile mounting options provide flexibility in installation

Applications

  • Suitable for automation control circuits
  • Designed for power distribution systems
  • Effective in safety and interlock circuits
  • Utilised in machine automation and control panels

Technical Data Sheets

Datasheet - LZX:PT370024

Legislation and Compliance

COO (Country of Origin): AT

View complete specifications on Siemens
