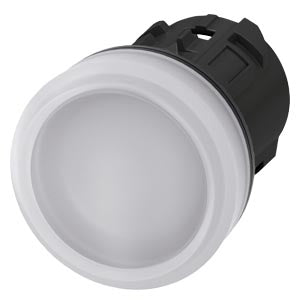

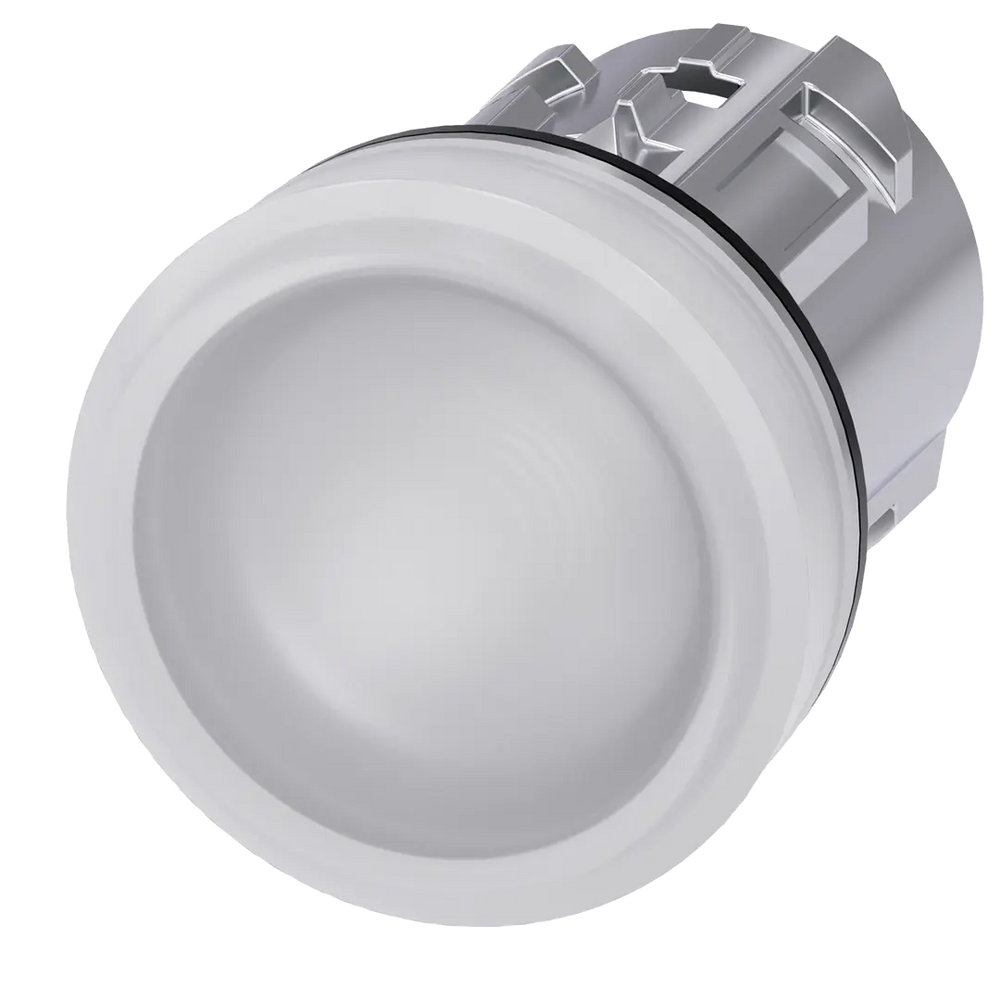

Siemens Indicator light, round, plastic, white, 22mm

Product Overview

This SIRIUS ACT indicator light is designed for signaling switching states or faults in industrial systems with brilliant luminosity thanks to energy-efficient LED technology. The 22mm round indicator light features a high-gloss metal construction with a white, smooth lens design that provides excellent visibility and durability in demanding industrial environments.

Key Features

• Size: 22mm diameter round design
• Construction: Metal body with high-gloss finish
• Lens Color: White with smooth surface
• Protection Rating: IP67/IP69K - providing protection against dust, water immersion, and high-pressure cleaning
• Installation: Hole diameter: 22.3mm
• Design Type: High lens design for enhanced visibility

Technical Specifications

• Article Number: 3SU1051-6AA60-0AA0
• EAN: 4011209946460
• Net Weight: 0.026 kg

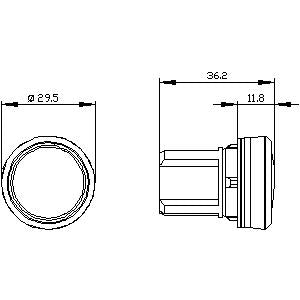

• Mounting Specifications:
  • Hole diameter: 22.3mm
  • Width of opening: 29.5mm
  • Height of opening: 11.8mm
• Number of Indicator Lights: 1 installable unit
• Packaging: 30.00 x 45.00 x 30.00 mm
• Country of Origin: China

Compliance & Certifications

• RoHS Compliance: Compliant since 01.10.2014
• Export Control: AL: N / ECCN: N
• WEEE Take-Back: Yes, compliant with 2012/19/EU directive

Applications Part of the SIRIUS ACT portfolio, this indicator light is ideal for signaling switching states or system faults in industrial automation applications. The innovative snap-on concept makes installation easy and can be done with one hand without tools.

Product Series Information Under the brand name SIRIUS ACT, Siemens offers a comprehensive portfolio of pushbuttons and signaling devices with global product approvals in modern design lines featuring rugged genuine metal and high-grade plastic construction.
