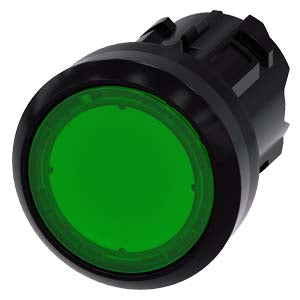

Siemens Indicator light in illuminated pushbutton design, round, green, 22mm Part number 3SU1001-0AD40-0AA0

Product Overview

The Siemens SIRIUS ACT illuminated pushbutton (SKU: 3SU1001-0AD40-0AA0) is a 22 mm-mounting-diameter, round plastic actuator with integrated light source in green-colour and black front ring. It is designed for momentary-contact operation and clear signalling in industrial control panels.

Key Features

• 22 mm round illuminated pushbutton head
• Green actuator for status indication
• Black plastic front ring for aesthetic consistency in control panels
• Momentary contact operation (push to actuate, return on release)
• Flat-style actuator for flush mounting
• High front protection rating: IP66 / IP67 / IP69K
• Suitable for industrial-harsh environments (shock & vibration resistant)

Technical Specifications

• Product Type: Illuminated pushbutton head, SIRIUS ACT series
• Article Number: 3SU1001-0AD40-0AA0
• Pick-off Light Source: Yes
• Contact Module Available: Yes
• Colour of Actuator: Green
• Material of Actuator: Plastic
• Shape of Actuator: Round
• Outer Diameter of Actuating Element: 29.5 mm
• Mounting Diameter: 22.3 mm (+0.4 mm tolerance)
• Installation Depth: 24.3 mm
• Operating Temperature: –25 °C to +70 °C
• Storage/Transport Temperature: –40 °C to +80 °C
• Weight (approx.): 13 g

Compliance & Certifications

• Front protection: IP66, IP67, IP69K
• Shock resistance: 15 g / 11 ms (IEC 60068-2-27)
• Vibration resistance: 10–500 Hz / 5 g (IEC 60068-2-6)
• Industrial application suitable; RoHS compliant and part of Siemens EcoProfile

Applications

Ideal for signalling and operator-interface use in control panels, machine-side interfaces and automation systems where durable and highly visible indication is required. Its SIRIUS ACT design ensures compatibility with industrial environments and consistent system integration.
