Product Overview

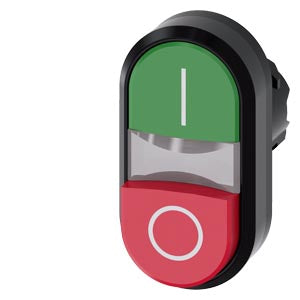

The SIRIUS ACT 3SU1001-3BB42-0AK0 is a premium 22 mm round illuminated twin pushbutton designed for industrial control applications requiring dual-function visual feedback and I/O control. This plastic twin pushbutton with green "I" (flat) and red "O" (raised) buttons with integrated illumination capability combines robust construction with clear visual confirmation signals for demanding industrial environments.

Key Features

Design & Construction:

• 22 mm round mounting diameter with twin pushbutton design
• High-grade plastic front ring and collar construction
• Dual-button configuration: Green "I" (flat) and Red "O" (raised)
• Integrated illumination for clear visual status feedback on both buttons
• Snap-on mounting system without tools required
• Translucent button caps for optimal light transmission

Operating Mechanism:

• Twin Button Operation: Independent operation of both green and red buttons
• Illuminated Design: Built-in LED compatibility for status indication on both buttons
• Visual Feedback: Clear illumination through both green and red translucent actuators
• Button Differentiation: Flat green "I" button and raised red "O" button for tactile identification
• I/O Color Coding: Green for "I" (input/on) and red for "O" (output/off) functions

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Button Configuration: Dual independent buttons
• Contact Configuration: Depends on contact module selection
• Electrical Rating: 10 A at 400 V AC per button
• Mechanical Life: 10 million operations per button
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)
• Illumination: LED compatible for status indication on both buttons

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications

Ideal for use in:

• I/O control systems requiring visual status feedback
• Manufacturing equipment with dual-function operation
• Process control systems with illuminated I/O confirmation
• Control panels requiring start/stop indication with visual feedback
• Equipment requiring illuminated operational status for both functions
• Applications requiring tactile and visual differentiation between functions
• Dual-function control with independent status indication

Illumination Features

• Dual LED Integration: Compatible with 3SU14 series LED modules for both buttons
• Independent Visual Status: Clear indication of operational state for each function
• Color-Coded Operation: Green and red illumination for intuitive I/O identification
• Energy Efficient: LED technology for low power consumption
• Long Life: Extended operational life with LED illumination
• Enhanced Recognition: Optimal visibility for dual-function applications

Button Configuration

• Green "I" Button: Flat design for input/on functions with green illumination
• Red "O" Button: Raised design for output/off functions with red illumination
• Tactile Differentiation: Physical button height differences for blind operation
• Visual Identification: Color-coded operation with illuminated feedback

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• Contact Modules: Compatible with 3SU14 series contact and LED modules
• Modular Design: Supports stacking of up to 2 contact modules
• Illumination Integration: Easy LED module integration for dual-button status indication

Series Compatibility

Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.023 kg
• Country of Origin: China
• EAN: 4011209964150
• UPC: 804766064142
• Package Dimensions: 30 x 60 x 50 mm
