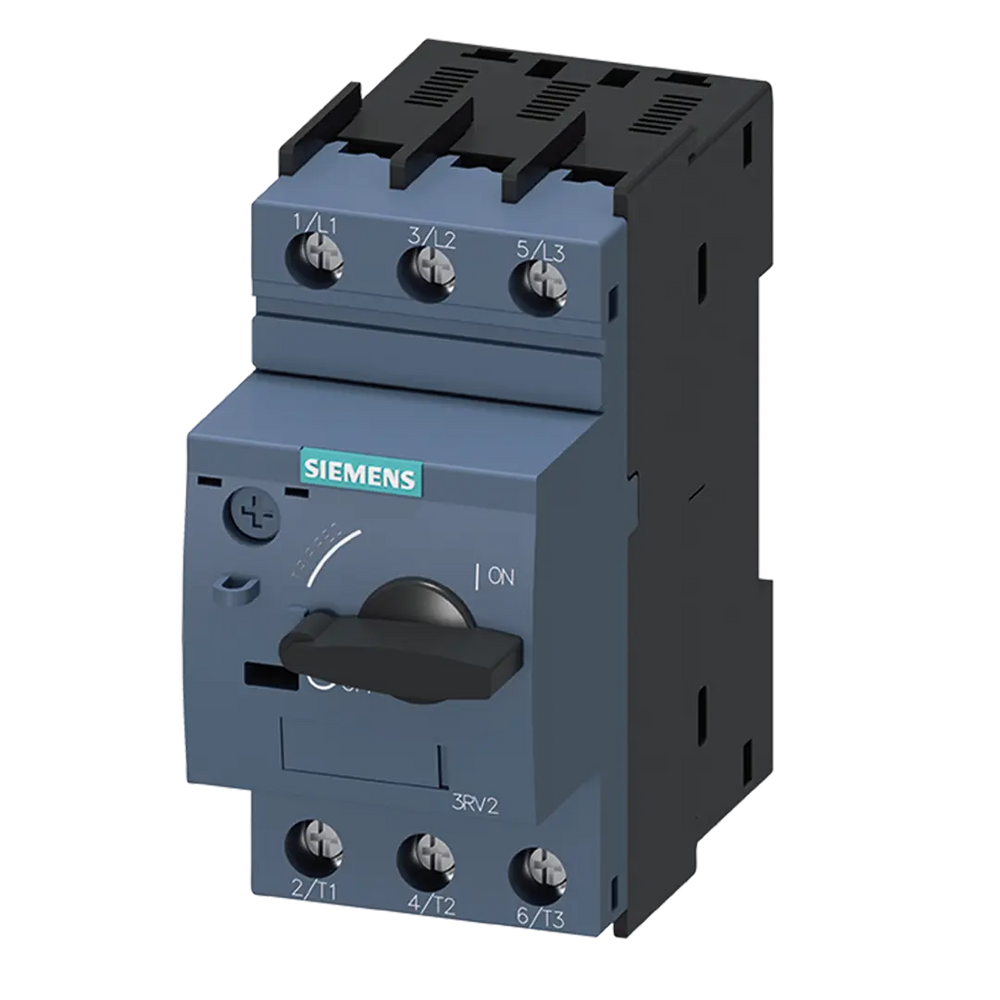

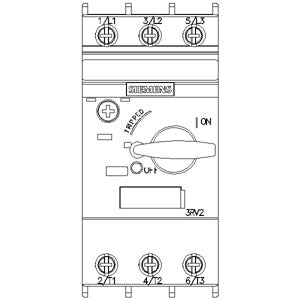

Product Overview

Circuit breaker size S0 for motor protection, CLASS 10 A-release 27...32 A N-release 400 A screw terminal Standard switching capacity

Key Features

• Size: S0 (45 mm width)
• Current Range: 27...32 A adjustable thermal overload release
• Short-circuit Release: 400 A (N-release)
• Trip Class: CLASS 10 according to IEC 60947-4-1
• Connection System: Screw terminal
• Switching Capacity: Standard switching capacity
• Number of Poles: 3-pole
• Rated Operational Voltage: Up to 690 V AC
• Rated Frequency: 50/60 Hz

Technical Specifications

Standards Compliance:

• IEC 60947-1, EN 60947-1 (VDE 0660 Part 100)
• IEC 60947-2, EN 60947-2 (VDE 0660 Part 101)
• IEC 60947-4-1, EN 60947-4-1 (VDE 0660 Part 102)
• UL 508 (UL 60947-4-1), CSA C22.2 No. 14 (CSA-C22.2 No. 60947-4-1)

Operating Conditions:

• Ambient Temperature: -20°C to +70°C (with current reduction above +60°C)
• Mounting Position: Any position according to IEC 60447
• Degree of Protection: IP20
• Touch Protection: Finger-safe according to DIN EN 50274
• Net Weight: 0.379 kg

Performance Features:

• Phase loss sensitivity for reliable motor protection
• Integrated overload and short-circuit protection
• Temperature compensation from -20°C to +60°C
• Test function for operational verification
• Isolating function according to IEC 60947-2
• Explosion protection approval for motors with "increased safety" type (EEx e)
• Short-circuit breaking capacity up to 55 kA at 400V AC

Applications

• Motor protection for three-phase motors (30-40 HP range)
• Overload and short-circuit protection for high-power applications
• System protection applications
• Load feeder protection
• Control circuit switching
• Suitable for motors with rated currents between 27-32 A
• Industrial automation and process control applications
• Manufacturing and production line equipment
• Heavy-duty industrial applications
• Large conveyor systems and industrial machinery
• High-capacity pump, fan, and compressor applications
• Material handling and processing equipment
• Large industrial mixers and agitators
• High-power HVAC systems

Connection System

Screw Terminals:

• Connection Screw: M4, Pozidriv size 2
• Operating Tool: Ø 5 to 6 mm
• Specified Tightening Torque: 2.0 to 2.5 Nm
• Conductor Cross-sections (1-wire or 2-wire connection possible):
  • Solid and stranded: 2 x (1.0 to 2.5) mm², 2 x (2.5 to 10) mm²
  • Finely stranded with end sleeve: 2 x (1.0 to 2.5) mm², 2 x (2.5 to 6) mm², max. 1 x 10 mm²
  • AWG cables: 2 x (16 to 12), 2 x (14 to 8)

Accessories Available

• Auxiliary switches (transverse and lateral)
• Signaling switches for status monitoring
• Auxiliary releases (undervoltage and shunt)
• Disconnector modules
• Door-coupling rotary operating mechanisms
• Enclosures and mounting accessories
• Link modules for contactor integration
• 3-phase busbar systems
• Sealable covers for tamper protection
• Phase barriers for enhanced safety

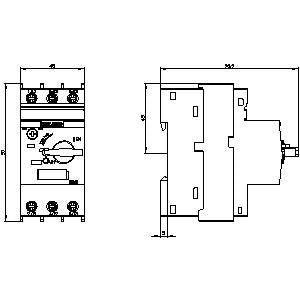

Installation

• Mounting: 35 mm DIN rail according to DIN EN 60715 or screw mounting
• Clearance Requirements: 30 mm from grounded or live parts
• Connection: Screw terminals for secure and reliable wiring
• Modular System: Compatible with SIRIUS 3RT2 contactors and accessories
• Package Dimensions: 49.00 x 102.00 x 102.00 mm
• Snap-on mounting for easy installation and removal
• Side-by-side mounting capability

Compliance & Environmental

• Country of Origin: Germany
• RoHS Compliance: Since 01.10.2009
• WEEE Compliance: Take-back obligation applies
• REACH Regulation: Contains lead and lead titanium zirconium oxide in concentrations >0.1% w/w
• UL/CSA Approvals: Available for North American applications
• ATEX Approval: For hazardous area applications
• Product Class: A - Standard product, stock item with return guidelines

Quality & Reliability

• Manufactured in Germany with strict quality control
• Long-term stability with proven bimetal technology
• Mechanical endurance: 100,000 operating cycles
• Electrical durability: 100,000 operating cycles
• Maximum switching frequency: 15 starts per hour
• Current-limiting characteristics for enhanced protection
• Vibration and shock resistance according to IEC 60068-2-27

Motor Protection Benefits

• Prevents motor damage from overload conditions
• Protects against phase loss and unbalanced loads
• Reduces downtime with reliable trip characteristics
• Extends motor life through precise current monitoring
• Suitable for standard and energy-efficient IE3 motors
• Optimized for side-by-side installation in control panels
• Maximum N-release rating (400A) for highest power applications

Design Features

• Robust screw terminal design for industrial environments
• Clear current setting scale for easy adjustment (27-32A range)
• Integrated test function for maintenance verification
• Compact 45mm width for space-efficient installation
• Lockable rotary operating mechanism
• Visual trip indication for quick fault identification
• Maximum short-circuit protection with 400A N-release
• Rotary ON/OFF handle for manual operation

Maximum Power Applications

• Highest Current Rating: 27-32A for maximum motor sizes in S0 range
• Superior Short-Circuit Protection: 400A N-release for ultimate safety
• Ideal for Large Motors: Suitable for motors up to 40 HP at 480V
• Heavy-Duty Applications: Designed for continuous operation in demanding environments
• Optimized for IE3 Motors: Specially adapted for energy-efficient motors
• Premium Protection: Enhanced protection for high-value industrial equipment
• Maximum Performance: Perfect for the most demanding motor protection applications

Advanced Protection Features

• Maximum Current Range: 27-32A for largest motors in size S0
• Ultimate Short-Circuit Protection: 400A N-release for maximum safety
• Optimized for IE3 Motors: Specially adapted for energy-efficient motors
• Reliable Trip Characteristics: CLASS 10 tripping for consistent performance
• Temperature Compensated: Stable operation across wide temperature ranges
• Phase Loss Detection: Protects against unbalanced load conditions
• Magnetic Trip Elements: Fast response to short-circuit conditions
• Bimetallic Overload Protection: Accurate thermal protection for motors
• Premium Design: Engineered for the most demanding applications

Industrial Applications

• Large Manufacturing Equipment: Protection for high-power production machinery
• Process Industries: Suitable for chemical, pharmaceutical, and food processing
• Material Handling: Conveyor systems, cranes, and hoists
• HVAC Systems: Large chillers, air handlers, and cooling towers
• Water Treatment: High-capacity pumps and treatment equipment
• Mining and Quarrying: Heavy-duty equipment protection
• Steel and Metal Processing: Rolling mills and processing equipment
• Power Generation: Auxiliary equipment protection

Performance Specifications

• Maximum Motor Protection: Up to 40 HP at 480V
• Enhanced Safety: 400A short-circuit protection
• Reliable Operation: CLASS 10 trip characteristics
• Wide Temperature Range: -20°C to +70°C operation
• High Durability: 100,000 operating cycles
• Precision Control: Adjustable 27-32A range
• Compact Design: 45mm width for space efficiency
• Professional Grade: German engineering and manufacturing
