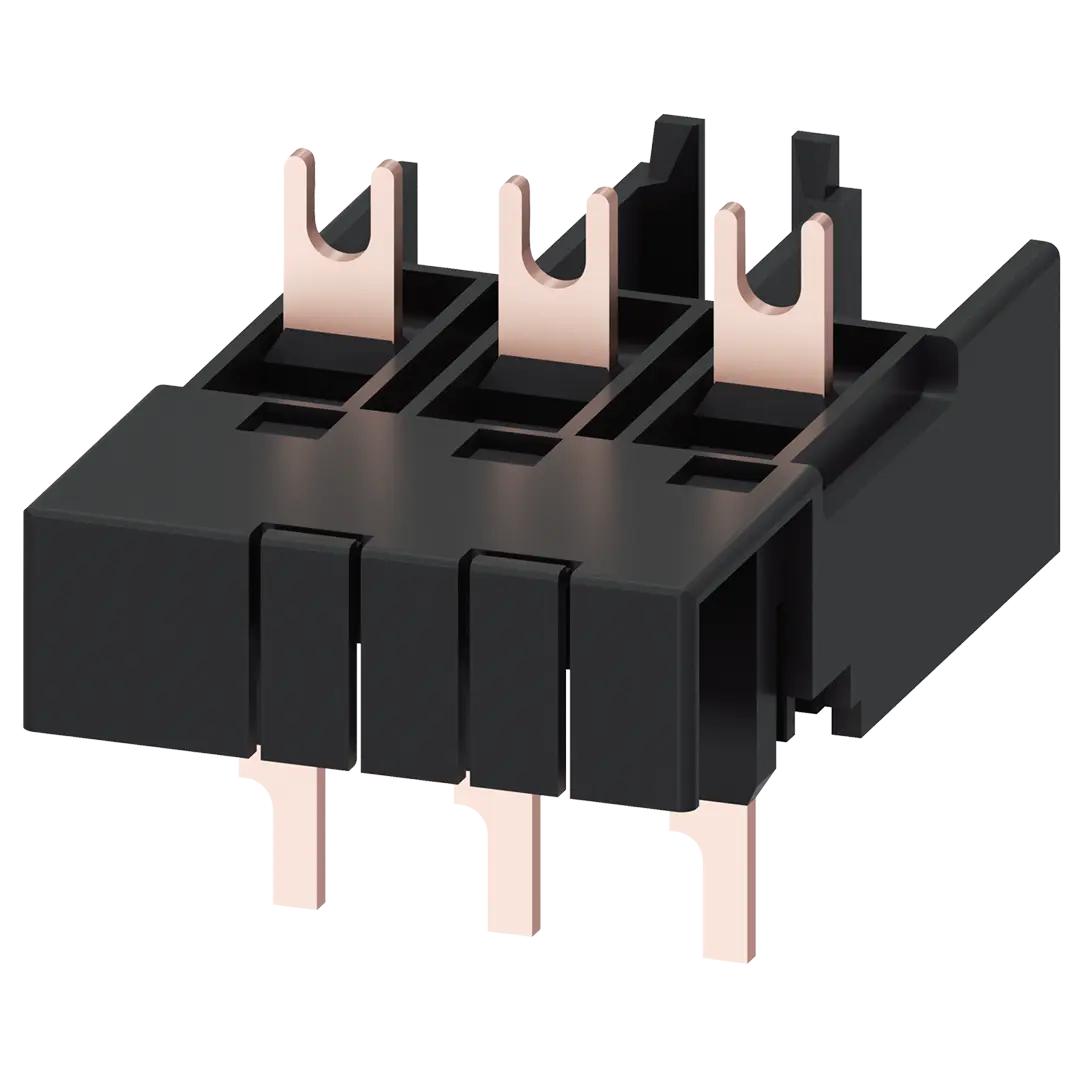

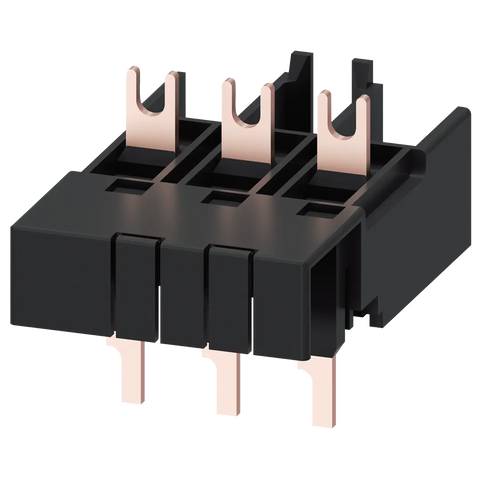

Siemens Link module for screw terminal electrical/mechanical

Product Overview

Link module for screw terminal featuring electrical and mechanical connections for 3RV2.1/3RV2.2-3RT2.2 DC operation, AC/DC operation or soft starter 3RW3 or solid-state contactor 3RF34. This versatile link module provides reliable electrical connections and mechanical mounting solutions for various motor control applications.

Key Specifications:

Physical Characteristics:

• Net Weight: 0.055 kg
• Packaging Dimensions: 63.00 x 106.00 x 50.00 mm
• Packaging Quantity: 1 piece

Product Details:

• Article Number: 3RA2921-1BA00
• EAN: 4011209741133
• Country of Origin: Hungary
• Product Lifecycle: PM300 Active Product

Compatibility:

• Compatible with 3RV2.1/3RV2.2-3RT2.2 series
• Suitable for DC operation and AC/DC operation
• Works with soft starter 3RW3
• Compatible with solid-state contactor 3RF34

Compliance & Standards:

• RoHS Compliant: Since 01.10.2009
• WEEE Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: N

Product Classification:

• eClass: 27-37-13-92
• ETIM: EC002498
• UNSPSC: 39-12-16-01

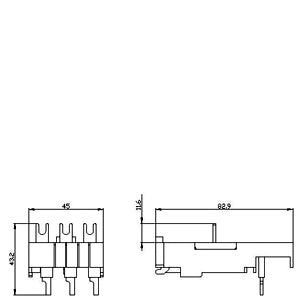

Download existing graphical data for this product:

Product Datasheet (PDF)
