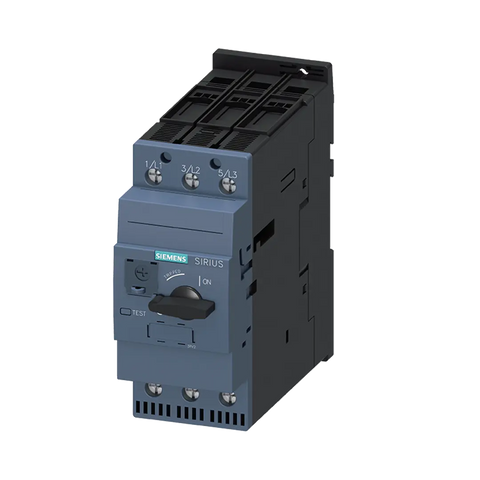

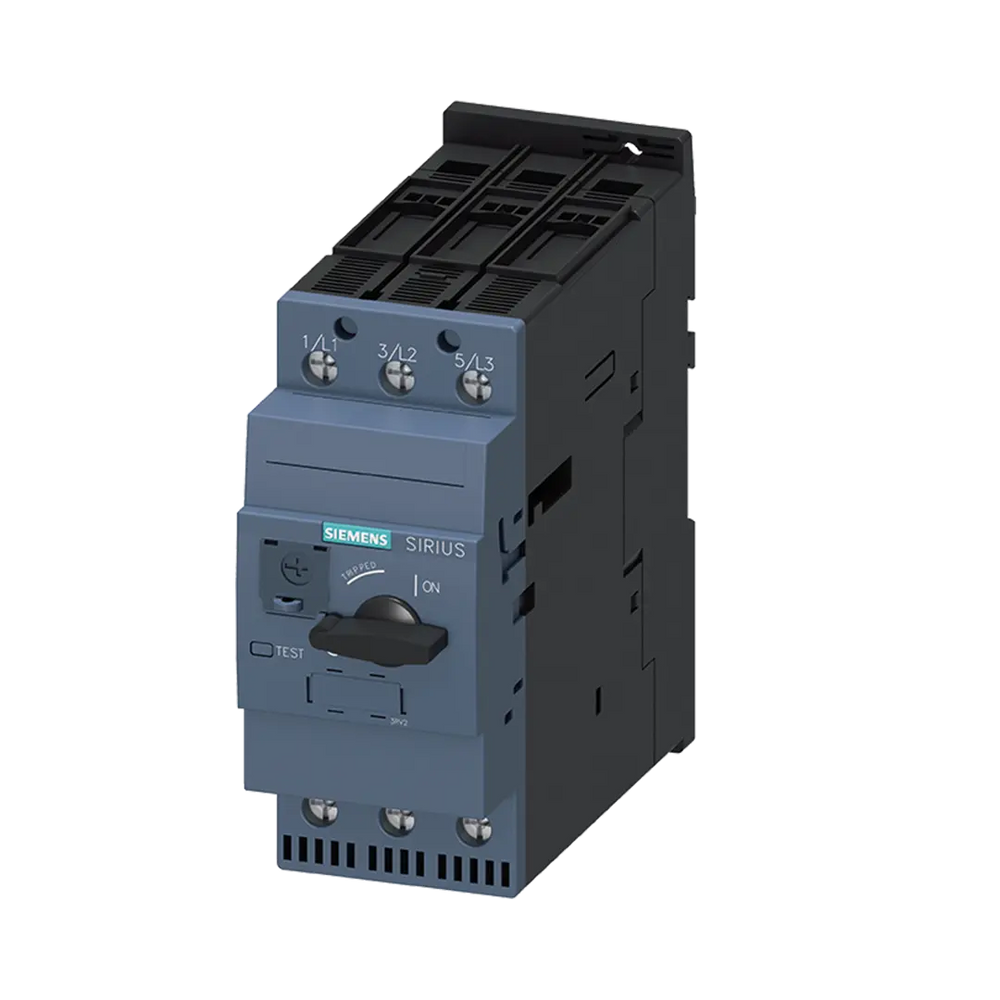

Siemens Circuit breaker for motor protection, size S2, 585A Part number 3RV2031-4UA10

EAN / Barcode 4011209945678
Product Type Control Panel
Product Class Motor protection circuit-breaker
Category Contactors and Motor Protection
Sub-category Motor Protection
ETIM Class Motor protection circuit-breaker
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

The SIRIUS circuit breaker 3RV2031-4UA10 from Siemens in size S2 is a compact, current-limiting circuit breaker for load feeders up to 18.5 kW at AC-3/400 V. Due to a short-circuit protection of 585 A and an adjustable overload protection of 32-40 A, the circuit breaker is ideally suited for the protection of motors.

Technical Specifications

Adjustment range undelayed short-circuit release585 A
Degree of protection (IP)IP20
Depth149 mm
Device constructionBuilt-in device fixed built-in technique
Height140 mm
Number of poles3
Overload release current setting40 A
Phase failure sensitiveYes
Power loss20 W
Rated operating voltage690 V
Rated operation power at AC-3, 230 V11 kW
Rated operation power at AC-3, 400 V18.5 kW
Rated permanent current Iu40 A
Rated short-circuit breaking capacity lcu at 400 V, AC65 kA
Switch off techniqueMagnetic
Type of control elementOther
Type of electrical connection of main circuitScrew connection
Width55 mm
With thermal overload protectionYes
Part Width62 mm
Part Height147 mm
Part Depth167 mm
Weight1074 g
Country of OriginGermany
View complete specifications on Siemens
