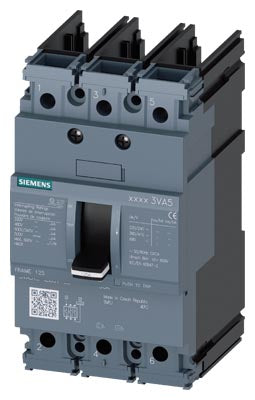

Siemens Circuit breaker, 3VA5 UL, 3-pole, class H, 65kA @ 480V Part number 3VA5111-6ED31-0AA0

Product Overview

The Siemens 3VA5111-6ED31-0AA0 is a 3-pole moulded-case circuit breaker (frame size 125 A) from the SENTRON 3VA5 series. It features a high breaking capacity (Class H) and is designed for three-phase systems with rated current of 110 A, providing dependable protection in industrial power-distribution applications.

Key Features

• 3-pole moulded-case circuit breaker (SENTRON 3VA5 series)
• Rated current In = 110 A
• High breaking capacity: Class H (e.g., up to 70 kA at 415 V)
• Frame size: 125 A
• Thermal/magnetic trip unit TM210 included for line protection
• Rated voltage up to 690 V AC, 500 V DC
• Fixed short-circuit protection version
• Compact design suitable for panel and switchgear integration

Technical Specifications

• Article Number: 3VA5111-6ED31-0AA0
• Series: SENTRON 3VA5, frame 125 A
• Poles: 3
• Rated Current (Iu): 110 A
• Rated Operational Voltage (Ue): up to 690 V AC / 500 V DC
• Breaking Capacity Class: H (High)
• Typical Breaking Capacity (Icu): 70 kA at 415 V, 10 kA at 690 V
• Main Circuit Connection Type: Lug or busbar (as per installation)

Compliance & Certifications

• Manufactured under Siemens SENTRON low-voltage switchgear quality standards
• Complies with relevant IEC/EN and UL standards for moulded-case circuit breakers

Applications

Used for three-phase power protection in industrial switchboards, distribution panels and machine-room feeders. Ideal where reliable, high-capacity circuit interruption is required, such as manufacturing plants, utilities, commercial buildings and infrastructure installations.
