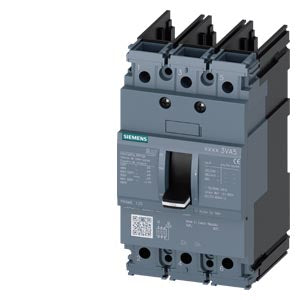

Siemens Circuit breaker, 3-pole, 65kA @ 480V, 100A

Product Overview

Circuit breaker 3VA5 UL Frame 125 breaking capacity class H 65 kA @ 480 V 3-pole, line protection TM210, FTFM, In=100 A overload protection Ir=100 A permanently set short-circuit protection Ii=10 x In without connection.

Article Number: 3VA5110-6ED31-0AA0

Key Features:

UL/IEC Dual Certification: Complies with both UL and IEC standards for global application flexibility
UL Frame 125: North American standard frame size optimized for 480V systems
High Breaking Capacity: Class H rating with 65 kA breaking capacity at 480V for demanding applications
100A Current Rating: Suitable for medium-duty industrial and commercial electrical systems
TM210 Protection: Reliable thermal-magnetic protection system with FTFM technology
Fixed Overload Setting: Permanently set Ir=100A for consistent, reliable protection
3-Pole Configuration: Optimized for three-phase power distribution systems
Connection Flexibility: Supplied without terminals for custom connection requirements

Technical Specifications:

Frame Size: UL Frame 125
Pole Configuration: 3-pole
Breaking Capacity: Class H, 65 kA @ 480V
Nominal Current (In): 100A
Protection System: TM210 thermal-magnetic with FTFM
Overload Protection: Ir=100A (permanently set)
Short-Circuit Protection: Ii=10 x In (1000A)
Connection Type: Without connection (terminals sold separately)
Net Weight: 0.850 kg
Packaging Dimensions: 92.00 x 150.00 x 116.00 mm
Quantity Unit: 1 Piece
EAN: 4042948841273
UPC: 804766300967
Country of Origin: Mexico

Product Benefits:

Global Standards Compliance: UL/IEC dual rating ensures compatibility with international electrical systems
North American Optimized: UL Frame 125 and 480V rating ideal for US and Canadian applications
High Performance: Class H breaking capacity provides superior fault current handling
Reliable Protection: TM210 thermal-magnetic system delivers consistent, proven protection performance
Installation Flexibility: Without connection design allows custom terminal selection for specific applications
Compact Design: Lightweight 0.850 kg construction with space-efficient footprint
Fixed Settings: Permanently set overload protection eliminates adjustment concerns and ensures consistency
Professional Grade: Built to meet demanding North American industrial and commercial requirements
Cost-Effective Solution: Reliable protection without unnecessary complexity for standard applications
Quality Manufacturing: Mexican production facility ensures consistent quality with competitive delivery

Applications: Essential protection device for North American industrial and commercial electrical systems requiring UL-listed circuit protection. Ideal for motor control centers, distribution panels, industrial machinery, commercial buildings, and manufacturing equipment operating at 480V. Perfect for applications requiring reliable 100A protection with high breaking capacity such as HVAC systems, industrial automation, food processing equipment, and commercial power distribution where UL compliance is mandatory.

Protection Features:

Thermal-Magnetic Protection: TM210 system provides reliable overload and short-circuit protection
FTFM Technology: Fixed Trip, Fixed Magnetic protection for consistent performance
Class H Performance: 65 kA breaking capacity handles high fault currents in robust electrical systems
Permanently Set Overload: Ir=100A setting eliminates field adjustment issues
Short-Circuit Protection: 10 x In magnetic trip for reliable fault clearing

Electrical Specifications:

Nominal Current: 100A continuous rating
Protection Type: TM210 thermal-magnetic system
Overload Setting: Ir=100A (fixed, non-adjustable)
Magnetic Trip: Ii=10 x In (1000A instantaneous)
Breaking Capacity: 65 kA @ 480V (Class H rating)
Standards Compliance: UL and IEC certified for global applications

North American Features:

UL Frame 125: Standard North American frame size for panel compatibility
480V Rating: Optimized for typical North American industrial voltage systems
UL Listed: Meets National Electrical Code (NEC) requirements
IEC Compatibility: Also complies with international IEC standards
Professional Installation: Designed for North American electrical practices and panel configurations

Installation Features:

Without Connection: Flexible terminal selection allows custom connection configurations
UL Frame 125 Mounting: Standard North American mounting compatibility
Compact Footprint: Space-efficient design optimizes panel utilization
Lightweight Construction: 0.850 kg weight facilitates easy installation and handling
Professional Design: Built for standard North American electrical panel applications

Connection Options:

Terminal Flexibility: Without connection design accommodates various terminal types
Custom Configurations: Allows selection of appropriate terminals for specific applications
Professional Installation: Standard connection options available separately
Panel Integration: Designed for seamless integration into North American electrical panels
Maintenance Access: Connection design facilitates service and maintenance operations

Standards and Applications:

UL Certification: Listed for use in North American electrical systems
IEC Compliance: Meets international standards for global applications
NEC Compatibility: Suitable for National Electrical Code applications
Commercial Grade: Built for demanding commercial and light industrial applications
Industrial Applications: Suitable for industrial environments requiring UL-listed protection

Compliance & Certifications:

Product Lifecycle: PM300: Active Product
RoHS Compliant: Since 01.01.2016
WEEE Directive: Take-back obligation applies
Export Control: AL: N / ECCN: EAR99
Product Class: B - Return restricted, contact Siemens partner

Classification Standards:

• eClass: 27-37-04-09
• ETIM: EC000228
• UNSPSC: 39-12-16-01

REACH Regulation Notice: This product includes articles containing substances from the REACH candidate list in concentrations higher than 0.1% weight by weight: Lead, Perfluorobutane sulfonic acid (PFBS) and its salts, and Tris(4-nonylphenyl, branched and linear) phosphite (TNPP) with ≥0.1% w/w of 4-nonylphenol. Based on current information, these substances do not pose risk when articles are used as intended, including disposal. Please refer to product documentation for additional details.
