Description

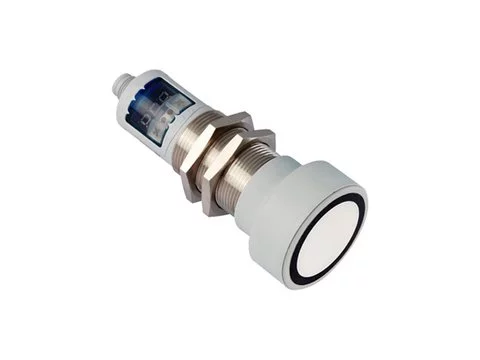

xThis ultrasonic sensor detects objects independent of colour and surface finish by measuring the time of flight of reflected ultrasonic pulses, providing a PNP switching output. It offers a working distance range of 350 mm to 3400 mm, housed in an M30 threaded barrel with an M12, 5-pin plug connection for straightforward panel or machine wiring. Rated to IP67 and suited to operating temperatures from -25°C to 70°C, it is appropriate for use in industrial environments subject to dust, moisture and temperature variation.
Key specifications
- IP rating: ip67
- Connection: Plug M12 / 5-pin
Specifications
x| IP Rating | ip67 |
| Temperature: Operating / Dynamic | -25°C to 70°C |
| Connection Type | Plug M12 / 5-pin |
| Rated Operating Distance (mm) | Working Distance min (350mm) max (3400mm) |
| Switching Frequency (Hz) | 4 |
Documents
