Description

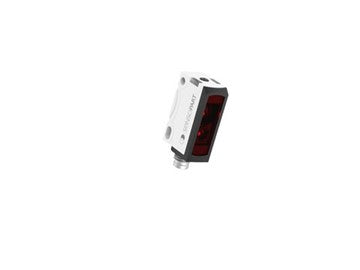

xThe FR25-RL-PNSL-M4M is a retro-reflective laser sensor with an auto-detect PNP/NPN switching output and IO-Link connectivity via a metal M8x1 4-pin plug. Its ABS housing with PMMA front screen and IP69/IP67 rating suit installation in demanding industrial environments, including washdown areas, while the compact housing dimensions allow mounting in confined spaces on panels or machinery. It operates from a 10-30 VDC supply with a switching frequency of up to 4000 Hz and a rated operating temperature range of -20°C to 60°C.
Key specifications
- IP rating: IP69 & IP67
- Operating voltage: 10 - 30 VDC
- Connection: Metal plug / M8x1 / 4-pin / IO-Link
- Output: 1x Auto-Detect (PNP/NPN)
Specifications
x| IP Rating | IP69 & IP67 |
| Temperature: Operating / Dynamic | -20°C to 60°C |
| Material: Housing / Grip | ABS |
| Material: Front screen | PMMA |
| Part Depth (mm) | 20mm |
| Part Width (mm) | 12mm |
| Part Height (mm) | 34mm |
| Connection Type | Metal plug / M8x1 / 4-pin / IO-Link |
| Switching Output | 1x Auto-Detect (PNP/NPN) |
| Switching Frequency (Hz) | ≤ 4000 Hz |
| Operating Voltage | 10 - 30 VDC |
