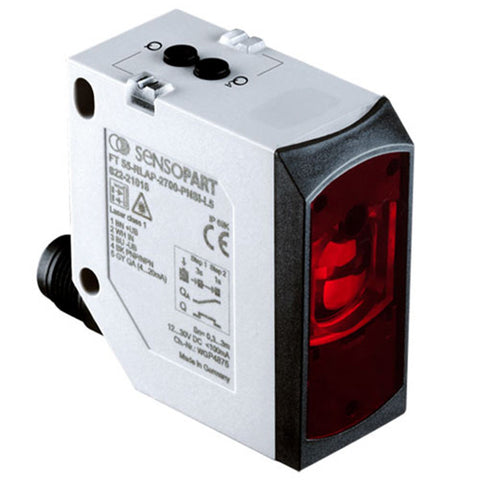

Sensopart FT 55-RLAP-5-PNSIL-L5 Diffuse laser sensor Part number 622-21023

The FT 55-RLAP-5-PNSIL-L5 is a diffuse laser sensor from Sensopart's FT 55 range, designed for object detection in industrial automation applications. It features an ABS housing with a PMMA front screen, IP67 and IP69K ingress protection, and operates across a temperature range of -40°C to 60°C, making it suitable for demanding or washdown environments. The sensor offers a PNP/NPN auto-detect switching output with a switching frequency of up to 250 Hz, IO-Link connectivity, and connects via an M12, 5-pin plug, operating on 18-30 VDC. Its compact housing dimensions allow for installation in space-constrained panel or machine layouts.

Key specifications

• IP rating: IP 67, IP69K
• Operating voltage: 18 - 30 VDC
• Connection: Plug M12 / 5-pin
• Output: Auto-Detect (PNP/NPN)
