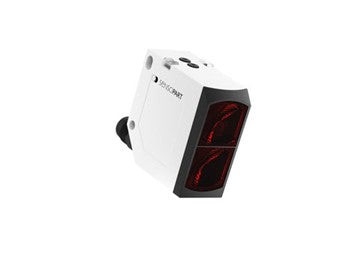

Sensopart FT 55-RLHP2-2PNSL-L5 Diffuse laser sensor Part number 623-11039

The FT 55-RLHP2-2PNSL-L5 is a diffuse laser sensor from Sensopart's FT 55 family, designed for object detection in industrial automation applications. It features an M12x1, 5-pin plug connection with IO-Link communication and provides auto-detect PNP/NPN switching outputs, operating from an 18-30 VDC supply with a switching frequency of up to 500 Hz. Housed in ABS with a PMMA front screen, the sensor carries IP 67 and IP69K ratings and is rated for operation between -40°C and 60°C, making it suitable for use in washdown or harsh industrial environments. Its compact dimensions allow for straightforward integration into automation panels and machine builds.

Key specifications

• IP rating: IP 67, IP69K
• Operating voltage: 18 - 30 VDC
• Connection: Plug / M12x1 / 5-pin / IO-Link
• Output: 1 x Auto-Detect (PNP/NPN) / 2 x Auto-Detect (PNP/NPN)
