Schneider TeSys D Contactor, 3P(3 NO), 12 V DC Coil - Rubicon Partner Portal
Schneider TeSys D Contactor, 3P(3 NO), 12 V DC Coil - Rubicon Partner Portal

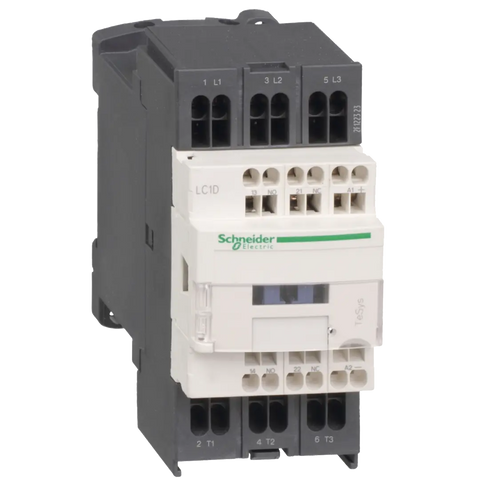

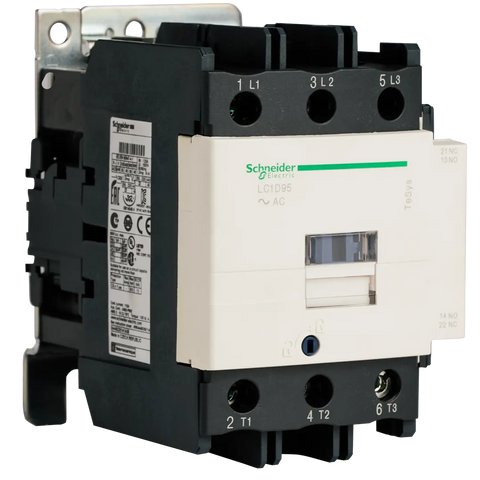

Schneider Tesys D Contactor, 3-pole, 3NO, 12VDC coil Part number LC1D09JD

The product is a 3P CONT 9A AC3 4KW 3NO 1NC 120VDC COIL included in passive products - non-continuous operation category. The functional unit is to make and break currents up to 9A for motor loads, and up to 25A for resistive loads at voltages of up to 690V for...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
The product is a 3P CONT 9A AC3 4KW 3NO 1NC 120VDC COIL included in passive products - non-continuous operation category. The functional unit is to make and break currents up to 9A for motor loads, and up to 25A for resistive loads at voltages of up to 690V for 20 years, in accordance with the IEC60947-1 and IEC60947-4 standards.
Specifications
Specifications
x
IP Rating / DetailedIP20 front face conforming to IEC 60529
Compliance/CertificationsCSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 60947-4-1,IEC 60335-1:Clause 30.2,IEC 60335-2-40:Annex JJ,UL 60335-2-40:Annex JJ,CSA C22.2 No 60947-4-1
Part Depth (mm)95mm
Part Width (mm)45mm
Part Height (mm)77mm
Connection TypePower circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end,Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end,Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Rated Operating VoltagePower circuit: <= 690 V AC 25...400 Hz
Current Rating9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit,25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit,9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Power Consumptionin W
Operating Period(Mech)30 Mcycles
Operating Period(Elec)0.6 Mcycles 25 A AC-1 at Ue <= 440 V,2 Mcycles 9 A AC-3 at Ue <= 440 V,2 Mcycles 9 A AC-3e at Ue <= 440 V
