Schneider Reversing contactor, 3NO, 3-pole, 110VAC coil, 18A
Schneider Reversing contactor, 3NO, 3-pole, 110VAC coil, 18A

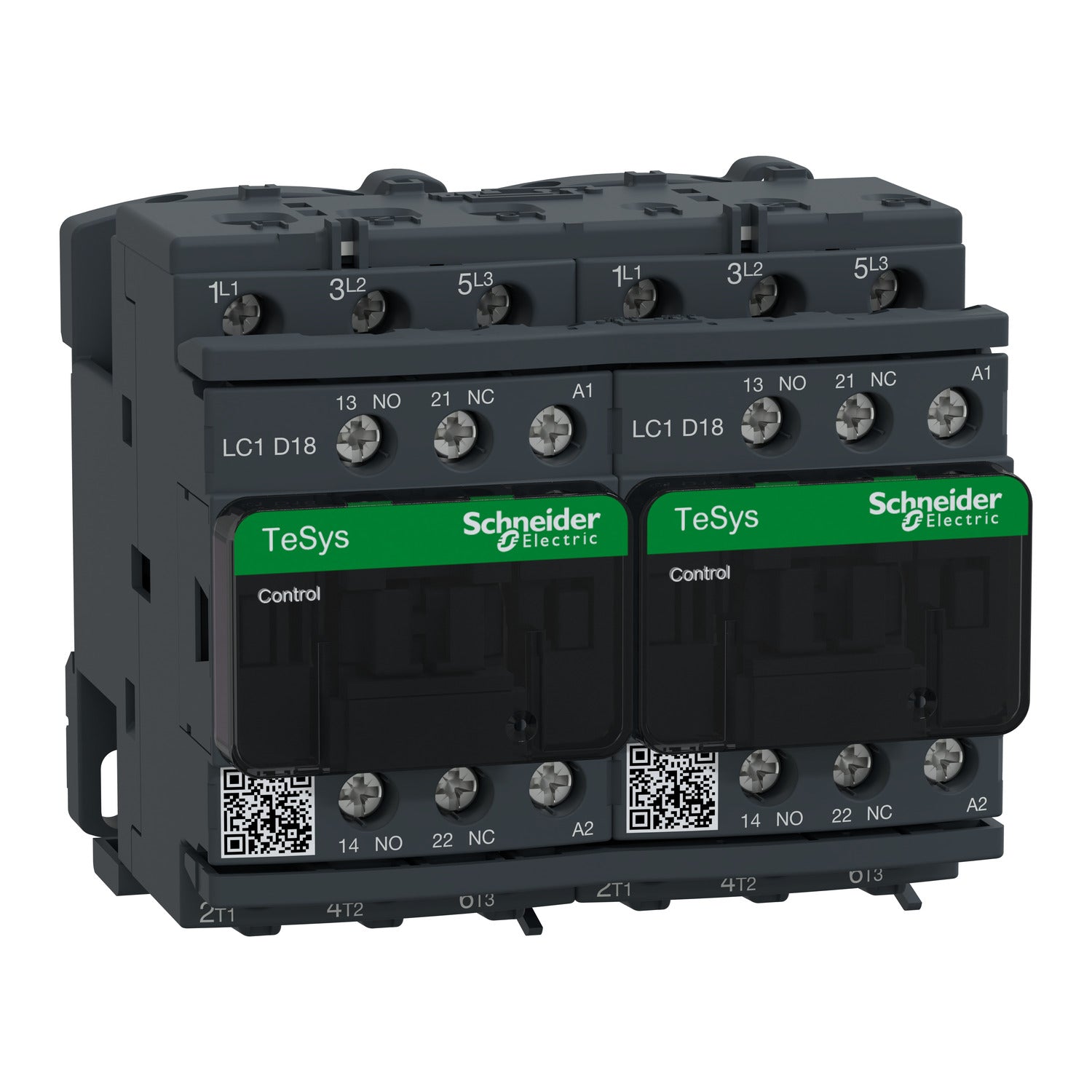

Schneider Reversing contactor, 3NO, 3-pole, 110VAC coil, 18A Part number LC2D18F7

This is a 3-pole reversing contactor with 3NO contacts and a 110VAC coil, rated 18A (AC-3) at up to 440V AC for the power circuit. It is used to switch and reverse the direction of three-phase motors within control panels, with power and control circuit terminals accepting a range of...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

This is a 3-pole reversing contactor with 3NO contacts and a 110VAC coil, rated 18A (AC-3) at up to 440V AC for the power circuit. It is used to switch and reverse the direction of three-phase motors within control panels, with power and control circuit terminals accepting a range of solid and flexible cable sizes via screw clamp connections. The unit carries an IP20 front-face rating and is rated for operation between -40°C and 60°C, with derating required above that range up to 70°C.

Key specifications

  • IP rating: IP20 front face conforming to IEC 60529
  • Operating temperature: -40…60 °C 60…70 °C with derating
Specifications
Specifications
x
IP Rating / DetailedIP20 front face conforming to IEC 60529
Compliance/CertificationsCSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508,IEC 60335-1
Temperature: Operating-40…60 °C
60…70 °C with derating
Part Depth (mm)86mm
Part Width (mm)90mm
Part Height (mm)77mm
Connection TypeControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end,Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end,Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end,Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end,Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid,Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid,Power circuit: screw clamp terminals 1 cable(s) 1.5…6 mm²flexible without cable end,Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm²flexible without cable end,Power circuit: screw clamp terminals 1 cable(s) 1…6 mm²flexible with cable end,Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end,Power circuit: screw clamp terminals 1 cable(s) 1.5…6 mm²solid,Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm²solid
Rated Operating VoltagePower circuit: <= 690 V AC 25...400 Hz
Current Rating18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit,32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit,18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Power Consumptionin VA
Operating Period(Mech)15 Mcycles
Operating Period(Elec)1.65 Mcycles 18 A AC-3 at Ue <= 440 V,1 Mcycles 32 A AC-1 at Ue <= 440 V,1.65 Mcycles 18 A AC-3e at Ue <= 440 V
