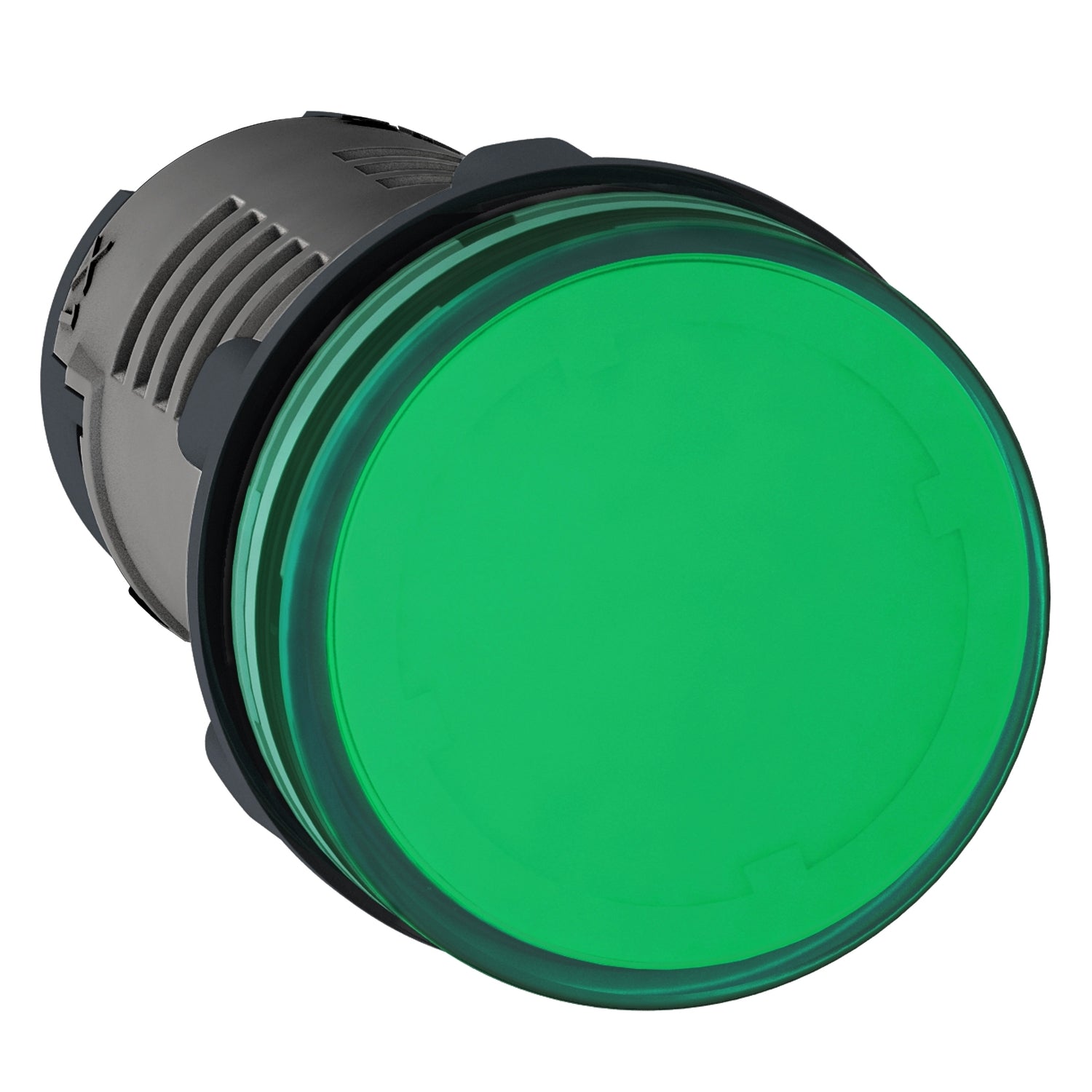

Schneider Round pilot light, LED, green, 220VAC
Schneider Round pilot light, LED, green, 220VAC

Schneider Round pilot light, LED, green, 220VAC Part number XB7EVM3LC

This is a round LED pilot light with a green lens, rated for a 220 V AC 50/60 Hz supply and drawing 16 to 20 mA. It provides visual status indication on control panels and machine interfaces, with an IP20 rating on the rear face for use inside enclosures. Screw...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

This is a round LED pilot light with a green lens, rated for a 220 V AC 50/60 Hz supply and drawing 16 to 20 mA. It provides visual status indication on control panels and machine interfaces, with an IP20 rating on the rear face for use inside enclosures. Screw clamp terminals accommodate a range of cable sizes, and the unit is rated for operation across a temperature range of -25 to 70 °C.

Key specifications

  • IP rating: IP20 (rear face) conforming to IEC 60529
  • Operating temperature: -25…70 °C
  • Colour: Green
Specifications
Specifications
x
IP Rating / DetailedIP20 (rear face) conforming to IEC 60529
Compliance/CertificationsIEC 60947-5-1,GB 14048.5,GB 14048.1,IEC 60947-1
Temperature: Operating-25…70 °C
Part Depth (mm)53mm
Part Width (mm)29mm
Part Height (mm)29mm
Screw TypeCross compatible with JIS No 1 screwdriver,Cross compatible with Philips no 1 screwdriver,Cross compatible with pozidriv No 1 screwdriver,Slotted compatible with flat Ø 4 mm screwdriver,Slotted compatible with flat Ø 5.5 mm screwdriver
Connection TypeScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1,Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
Supply Voltage220 V AC 50/60 Hz
Current Consumption16...20 mA
ColourGreen
Documents
Documents
x
Download Datasheet
