Description

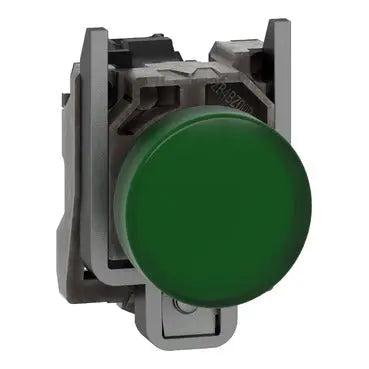

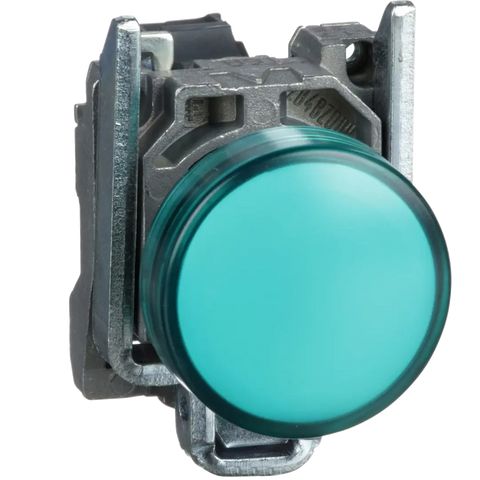

xThis green pilot light from the Harmony XB4 range features a metal construction with a 22 mm diameter. It is equipped with an integral LED and plain lens, designed for use in 24 V AC/DC circuits. It provides IP66, IP67, IP69, and IP69K protection.
Specifications
x| IP Rating | IP66 IEC 60529 IP67 IP69 IP69K |
| Country of Origin | Germany |
| Compliance/Certifications | CSA / CSA C22.2 No 14 / EN/IEC 60947-1 / EN/IEC 60947-5-1 / EN/IEC 60947-5-4 / EN/IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / UL 508 / UL Listed |
| Temperature: Operating | -40°C to 70°C |
| Part Depth (mm) | 54mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 47mm |
| Weight (g) | 80g |
| Packaging size / unit | 1 pc(s) |
| Material: Product | Chromium-plated metal |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Supply Voltage | 19.2 to 30 VDC / 21.6 yo 26.4 VAC |
| Current Consumption | 18 mA |
| Operating Period | Service Life 100000 h at rated voltage and 25 °C |
| Warranty | 18 Months |
| Colour | Green |
