Description

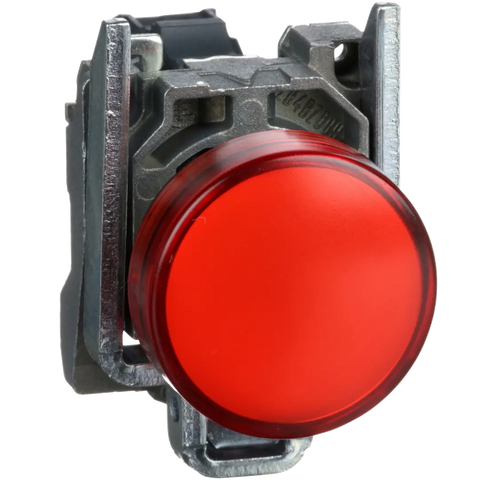

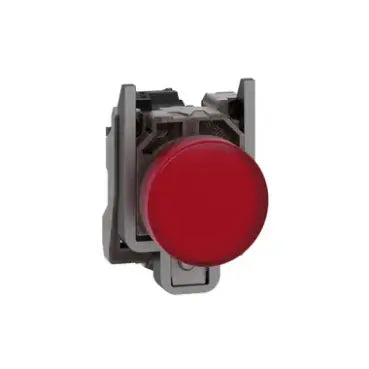

xThis red pilot light from Harmony XB4 is equipped with an integral LED for 24 V AC/DC operation. It has a 22 mm diameter and offers IP66, IP67, IP69, and IP69K protection, making it suitable for harsh industrial applications.
Specifications
x| IP Rating | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| Country of Origin | Germany |
| Compliance/Certifications | CSA / CSA C22.2 No 14 / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / UL 508 / UL listed |
| Temperature: Operating | -40°C to 70°C |
| Part Depth (mm) | 54mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 47mm |
| Weight (g) | 80g |
| Packaging size / unit | 1 pc(s) |
| Material: Product | Chromium-plated metal |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Supply Voltage | 24 V (AC/DC) |
| Current Consumption | 18 mA |
| Operating Period | Service Life 100000 h at rated voltage and 25 °C |
| Warranty | 18 Months |
| Colour | Red |
