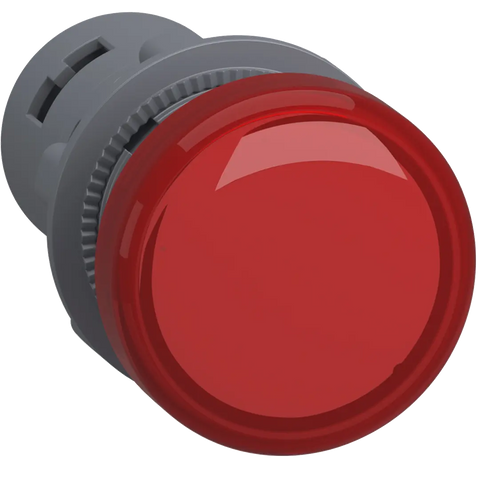

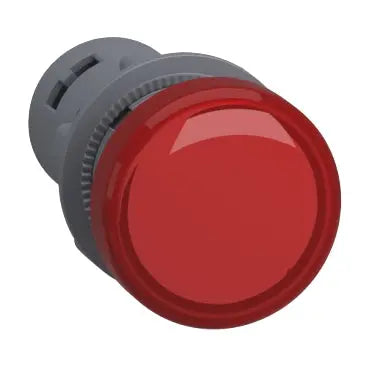

Schneider Monolithic pilot light, red, 24VAC/DC Part number XA2EVB4LC

This red pilot light from the Easy Harmony XA2 range is designed for 24 V AC/DC systems. It features an integral LED with a 22.5 mm diameter, providing IP65 protection, making it suitable for signaling applications in harsh environments.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 1 left in stock
Description
Description
x
This red pilot light from the Easy Harmony XA2 range is designed for 24 V AC/DC systems. It features an integral LED with a 22.5 mm diameter, providing IP65 protection, making it suitable for signaling applications in harsh environments.
Specifications
Specifications
x
IP RatingIP65 conforming to IEC 60529
Country of OriginGermany
Compliance/CertificationsCE / CCC / GB 14048.1 / GB 14048.5 / IEC 50102 / IEC 60529 / IEC 60947-1 / IEC 60947-5-1
Temperature: Operating-25°C to 70°C
Part Depth (mm)53mm
Part Width (mm)29mm
Part Height (mm)29mm
Weight (g)20g
Packaging size / unit1 pc(s)
Tightening Torque0.8 - 1 Nm
Screw TypeCross compatible with Philips no 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver
Connection TypeScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1
Supply Voltage0.8 to 1.2 V (AC/DC)
Current Consumption<= 20 mA
Operating PeriodService Life 40000 h at rated voltage and 25 °C
ColourRed
Documents
Documents
x
Download Datasheet
