Schneider Pilot Light Head, metal, white, Ø 22mm
Schneider Pilot Light Head, metal, white, Ø 22mm

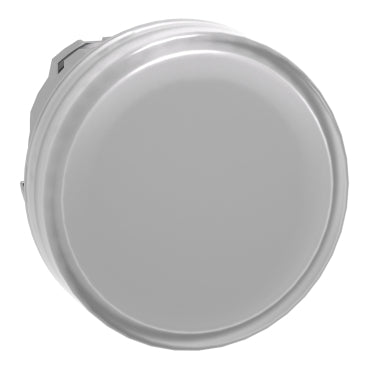

Schneider Pilot Light Head, metal, white, Ø 22mm Part number ZB4BV013

This pilot light head is designed for integral LED compatibility, featuring a white plain lens and a durable metal bezel. It has a mounting diameter of 22 mm and conforms to IP66, IP67, IP69, and IP69K standards, providing high visibility in various applications.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 5 left in stock
Description
Description
x

This pilot light head is designed for integral LED compatibility, featuring a white plain lens and a durable metal bezel. It has a mounting diameter of 22 mm and conforms to IP66, IP67, IP69, and IP69K standards, providing high visibility in various applications.

Specifications
Specifications
x
Range of productHarmony XB4
Product or component typeHead for pilot light
Product compatibilityUniversal LED
Device short nameZB4
Bezel materialChromium plated metal
Mounting diameter22 mm
Sale per indivisible quantity1
Head typeStandard
Shape of signaling unit headRound
Cap/operator or lens colourWhite
Operator additional informationWith plain lens
CAD overall width29 mm
CAD overall height29 mm
CAD overall depth30 mm
Net weight0.026 kg
Resistance to high pressure7000000 Pa at 55 °C, distance : 0.1 m
Electrical composition codeP1 in front mounting with integral LED P2 in front mounting with integral LED and transformer
device presentationBasic element
protective treatmentTH
Ambient air temperature for-40…70 °C
Overvoltage categoryClass I conforming to IEC 60536
IP degree of protectionIP66 conforming to IEC 60529 IP67 IP69 IP69K
NEMA degree of protectionNEMA 13 NEMA 4X
IK degree of protectionIK06 conforming to IEC 50102
Documents
Documents
x
Download Datasheet
