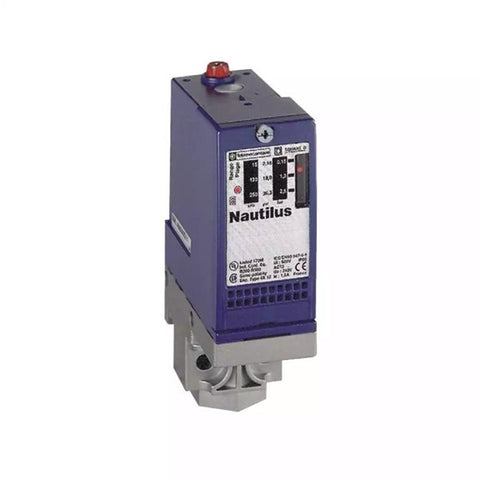

Telemecanique Sensors Pressure Sensor

Product Information

• Product Name: Telemecanique Sensors Pressure Sensor
• Minimum Pressure Reading: 1 bar
• Maximum Pressure Reading: 20 bar
• Output Type: Relay
• Pressure Reading Type: Differential
• Accuracy: 2%
• Media Measured: Air, Fresh Water, Hydraulic Fluid, Sea Water
• Process Connection: G1/4
• Electrical Connection: PG13.5 Cable Gland
• Maximum Current: 3 A AC, 100 mA DC
• Supply Voltage: 120 → 240 V AC, 250 V DC
• Housing Material: Zinc Alloy
• IP Rating: IP66
• Maximum Operating Temperature: +70°C
• Minimum Operating Temperature: -25°C

Technical Data Sheets

• Datasheet
