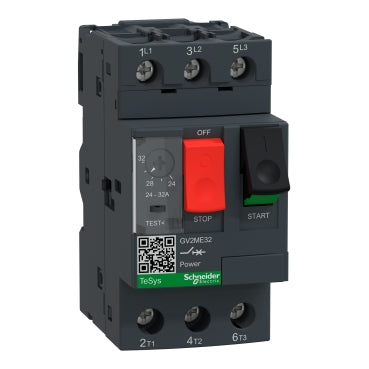

Schneider Motor circuit breaker, thermal magnetic, 24 - 32A Part number GV2ME32

This TeSys GV2 motor circuit breaker features a thermal-magnetic trip unit with an adjustable current range of 24-32 A. It offers robust motor protection with a breaking capacity of 50 kA at 230 V AC and 10 kA at 400 V AC. Ideal for industrial motor control.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 5 left in stock
Description
Description
x
This TeSys GV2 motor circuit breaker features a thermal-magnetic trip unit with an adjustable current range of 24-32 A. It offers robust motor protection with a breaking capacity of 50 kA at 230 V AC and 10 kA at 400 V AC. Ideal for industrial motor control.
Specifications
Specifications
x
IP RatingIP20 conforming to IEC 60529
Country of OriginGermany
Compliance/CertificationsATEX / BV / CCC / CSA / DNV-GL / EAC / EN/IEC 60947-2 / EN/IEC 60947-4-1 / LROS (Lloyds register of shipping) / RINA / UL / UKCA
Temperature: Operating-20°C to 60°C
Part Depth (mm)78.5mm
Part Width (mm)45mm
Part Height (mm)89mm
Weight (g)260g
Packaging size / unit1 pc(s)
Tightening Torque1.7 Nm
Connection Style3 P oles
Max Frequency50 / 60 Hz
Type of VoltageAC
Rated Operating Voltage690 VAC
Mounting Type35 mm symmetrical DIN rail / Clipped Panel / Screwed with adaptor plate
Current Rating / Rated Current32 A
Operating PeriodMechanical Durability 100000 cycles Electrical Durability 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In
Warranty18 Months
