Description

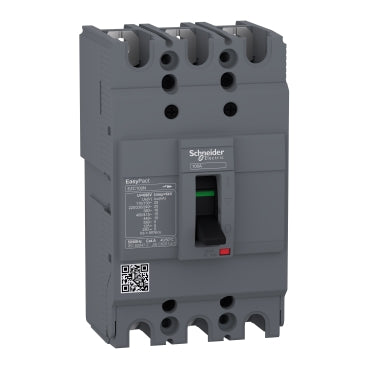

xThis three-pole thermal magnetic circuit breaker is rated at 50A and provides overcurrent protection for power distribution circuits within control panels. It is suitable for both AC and DC applications, with a rated operating voltage of 550 V AC, and carries an IP20 rating for protection against contact with live parts. The unit is fixed mounting and designed to operate across a temperature range of -25 to 70°C, making it suitable for use in varied industrial panel environments.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Operating temperature: -25…70 °C
- Mounting: Fixed
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | GB/T 14048.2,EN/IEC 60947-2,JIS C8201-2-2,EN/IEC 60947-1 |
| Temperature: Operating | -25…70 °C |
| Part Depth (mm) | 60mm |
| Part Width (mm) | 75mm |
| Part Height (mm) | 130mm |
| Max Frequency | 50/60 Hz |
| Type of Voltage | DC,AC |
| Rated Operating Voltage | 550 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mounting Type | Fixed |
| Operating Period(Mech) | 13000 cycles |
| Operating Period(Elec) | Category A: 4000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
