Description

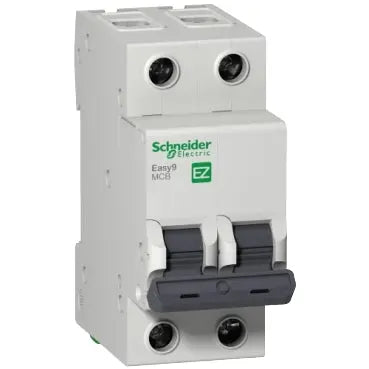

xThis miniature circuit breaker is rated for 6 A across 2 poles. It provides thermal-magnetic protection for AC distribution systems, with a breaking capacity of 3 kA at 400 V AC.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | SANS 60947-2 |
| Temperature: Operating | -5°C to 60 °C |
| Part Depth (mm) | 66.5mm |
| Part Width (mm) | 36mm |
| Part Height (mm) | 81mm |
| Weight (g) | 200g |
| Tightening Torque | 2 Nm top or bottom |
| Connection Type | Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible |
| Max Frequency | 50 / 60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 400 VAC |
| Mounting Type | Clip-on DIN rail |
| Current Rating / Rated Current | 6A |
| Operating Period | Mechanical Durability 10000 cycles / Electrical Durability 4000 cycles |
| Warranty | 18 Months |
| Colour | Grey |
| RAL Code | RAL 7035 |
