Description

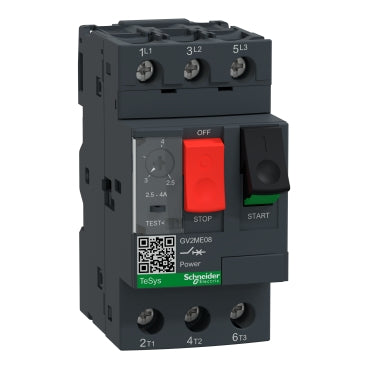

xThis TeSys GV2 motor circuit breaker provides protection for motors with a thermal-magnetic trip unit and an adjustable thermal protection range of 2.5–4 A. It is designed for three-phase motors in AC networks and can be mounted on DIN rails or panels.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | ATEX / BV / CCC / DNV-GL / EAC / EN/IEC 60947-2 / EN/IEC 60947-4-1 / LROS (Lloyds register of shipping) / RINA / UL / UKCA |
| Temperature: Operating | -20°C to 60°C |
| Part Depth (mm) | 78.5mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 89mm |
| Weight (g) | 260g |
| Tightening Torque | 1.4 Nm |
| Connection Style | 3 Poles |
| Max Frequency | 50 / 60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 VAC |
| Current Rating / Rated Current | 4 A |
| Operating Period | 100000 cycles (Mechanical) / 100000 cycles for AC-3 at 415 V / In\n100000 cycles for AC-3e at 415 V In (Electrical) |
| Warranty | 18 Months |
| Colour | Dark Grey |
