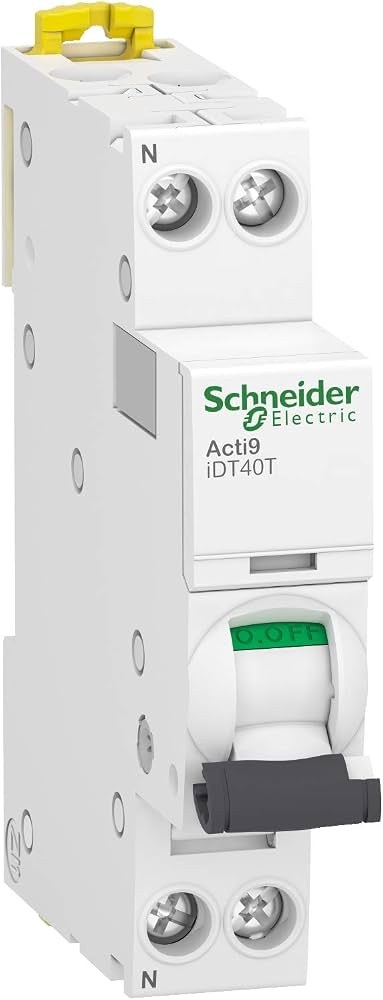

Schneider Modular circuit breaker, 1P+N, c-curve, 16A Part number A9P22616

This circuit breaker provides overcurrent and short-circuit protection for a single-phase-plus-neutral circuit, rated at 16A with a C-curve trip characteristic. The C-curve makes it suitable for circuits with moderate inrush currents, such as those supplying inductive or lightly capacitive loads. Its modular format allows mounting on standard DIN rail within...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

This circuit breaker provides overcurrent and short-circuit protection for a single-phase-plus-neutral circuit, rated at 16A with a C-curve trip characteristic. The C-curve makes it suitable for circuits with moderate inrush currents, such as those supplying inductive or lightly capacitive loads. Its modular format allows mounting on standard DIN rail within control panels and distribution boards.

Specifications
Specifications
x
Product data sheetA9P22616
Network frequency50 Hz
[Ue] rated operational voltage230 V AC 50 Hz
[Ics] rated service breakingcapacity 4500 A 100 % x Icn at 230 V AC 50 Hz conforming to EN/IEC 60898-1 4.5 kA 75 % x Icu at 230 V AC 50 Hz conforming to EN/IEC 60947-2
Limitation class3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage400 V AC 50 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstandvoltage 4 kV conforming to EN/IEC 60947-2
Contact position indicatorYes
Control typeToggle
Local signallingON/OFF indication Trip indicator
Mounting modeClip-on
Mounting supportDIN rail
9 mm pitches2
Height85 mm
Width18 mm
Depth74 mm
Net weight120 g
ColourWhite
Mechanical durability20000 cycles
Electrical durability20000 cycles
Locking options descriptionPadlocking device
Top connectionScrew
Sep 28, 20191
Bottom connectionScrew
Connections - terminalsTunnel type terminals top or bottom1…10 mm² flexible Tunnel type terminals top or bottom1…16 mm² rigid
Wire stripping length14 mm for top or bottom connection
Tightening torque2 N.m top or bottom
Earth-leakage protectionSeparate block
StandardsEN/IEC 60898-1 EN/IEC 60947-2
Product certificationsCE BV RINA DNV
IP degree of protectionIP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Pollution degree3 conforming to EN/IEC 60947-2
Relative humidity95 % at 55 °C
Operating altitude2000 m
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-40…85 °C
