Description

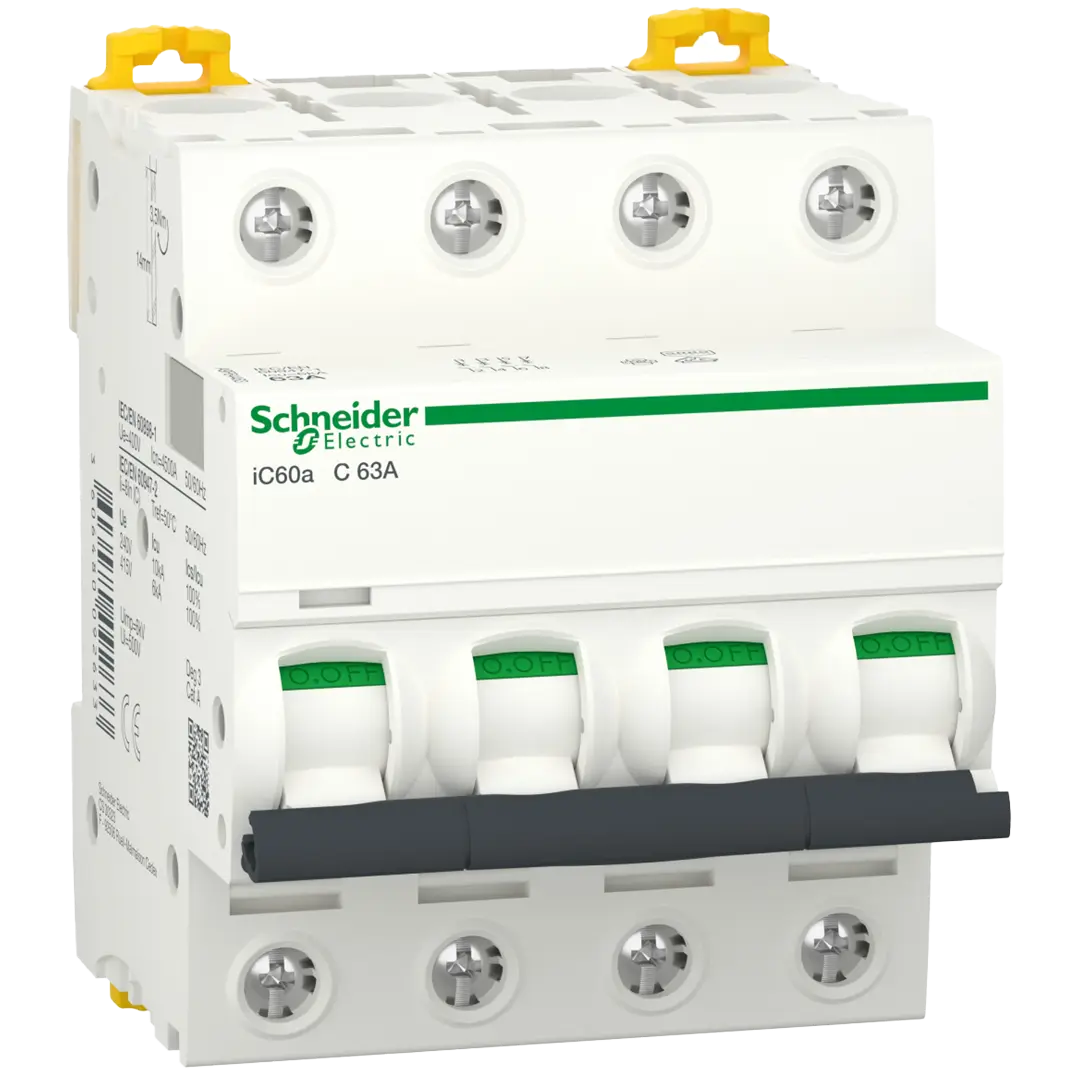

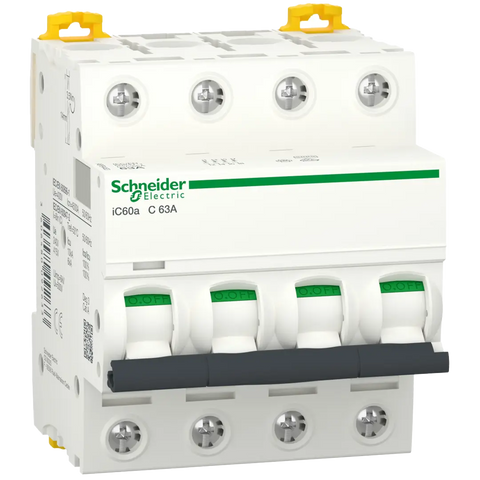

xThis four-pole miniature circuit breaker provides protection with a 63 A rated current. It operates with a thermal-magnetic trip unit and C curve, offering a breaking capacity of 4500 A at 400 V AC, making it suitable for high-load distribution systems.
Specifications
x| IP Rating | IP20 conforming to IEC 60529\nIP20 conforming to EN 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | IEC 60947-2 / EN 60947-2 |
| Temperature: Operating | -35°C to 70°C |
| Part Depth (mm) | 78.5mm |
| Part Width (mm) | 72mm |
| Part Height (mm) | 85mm |
| Weight (g) | 500g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 3.5 Nm |
| Connection Style | 4 Poles |
| Connection Type | Single terminal (top or bottom) 1…35 mm² rigid Single terminal (top or bottom) 1…25 mm² flexible |
| Max Frequency | 50 / 60 Hz |
| Type of Voltage | AC/DC |
| Mounting Type | DIN rail / Fixed |
| Current Rating / Rated Current | 63 A |
| Operating Period | 20000 cycles (Mechanical) / 10000 cycles(Electrical) |
| Warranty | 18 Months |
| Colour | White |
