Description

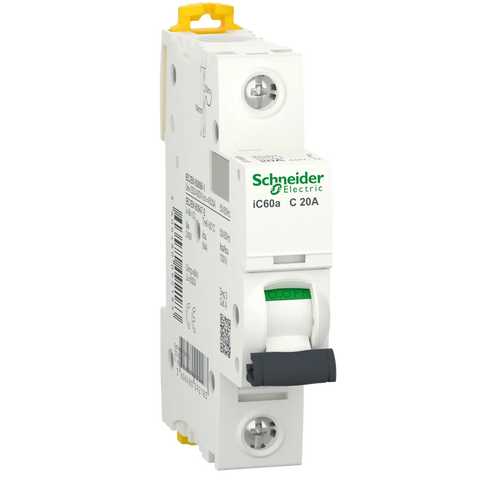

xThis Acti9 iC60a miniature circuit breaker (MCB) offers 1-pole protection with a rated current of 20 A. Designed for distribution applications, it features a C curve and a 4500 A breaking capacity at 230 V AC, conforming to IEC 60898-1. It also offers 6 kA short-circuit protection under IEC 60947-2, making it suitable for residential and commercial environments.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 / IP20 conforming to EN 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | EN 60898-1 / EN 60947-2 / IEC 60898-1 / IEC 60947-2 |
| Temperature: Operating | -35°C to 70°C |
| Part Depth (mm) | 78.5mm |
| Part Width (mm) | 18mm |
| Part Height (mm) | 85mm |
| Weight (g) | 215g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 2 Nm |
| Connection Style | 1 Pole |
| Connection Type | Single terminal (top or bottom) 1…25 mm² rigid / Single terminal (top or bottom) 1…16 mm² flexible |
| Max Frequency | 50 / 60 Hz |
| Type of Voltage | AC/DC |
| Mounting Type | DIN rail / Fixed |
| Current Rating / Rated Current | 20 A |
| Operating Period | 20000 cycles (Mechanical) / 10000 cycles(Electrical) |
| Warranty | 18 Months |
| Colour | White |
