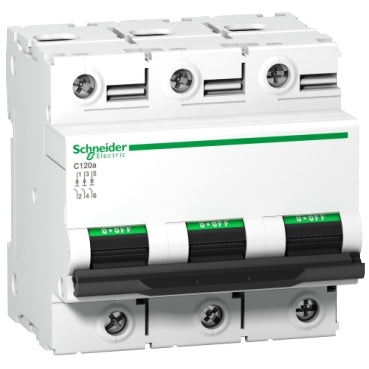

Schneider Mini circuit breaker, C-curve, 3-pole, 100A
Schneider Mini circuit breaker, C-curve, 3-pole, 100A

Schneider Mini circuit breaker, C-curve, 3-pole, 100A

This Acti9 C120a three-pole miniature circuit breaker features a 100 A rated current and C curve with a 5 kA breaking capacity at 230-400 V AC. Designed for distribution, it provides robust isolation.
Vendor: Schneider Electric
SKU: A9N60715
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This Acti9 C120a three-pole miniature circuit breaker features a 100 A rated current and C curve with a 5 kA breaking capacity at 230-400 V AC. Designed for distribution, it provides robust isolation.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsEN/IEC 60947-2
Temperature: Operating-30 °C to 70 °C
Part Depth (mm)73mm
Part Width (mm)81mm
Part Height (mm)81mm
Weight (g)615g
Packaging size / unit1 / 4 / 24 pc(s)
Connection TypeTunnel type terminals1 cable(s) 1 - 50 mm² rigid / Tunnel type terminals1 cable(s) 1.5 - 35 mm² flexible
Max Frequency50/60 Hz
Type of VoltageAC
Rated Operating Voltage230 - 400 VAC 50/60 Hz
Mounting Type35 mm symmetrical DIN rail / Clip-on
Current Rating / Rated Current100 A
Operating Period20000 cycles (mechanical) / 5000 cycles (electrical)
Warranty18 Months
ColourWhite
Documents
Documents
x
Download Datasheet
