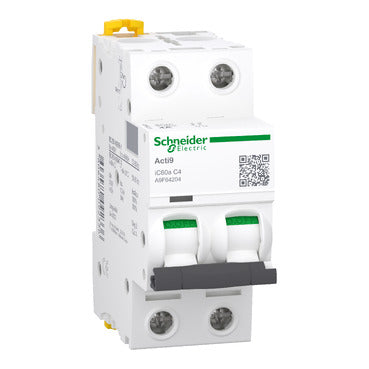

Schneider Mini circuit breaker, C-curve, 2-pole, 4A Part number A9F64204

This is a 2-pole miniature circuit breaker with a C-curve trip characteristic, rated at 4A for AC applications at 50/60 Hz. It provides IP20 B protection and operates across a temperature range of -35 to 70°C, with terminals accepting rigid conductors from 1 to 25 mm² or flexible conductors from 1 to 16 mm², tightened to 2 Nm. Its removable comb busbar mounting suits installation in control panels for power distribution circuits requiring protection against overcurrent and short-circuit conditions.

Key specifications

• IP rating: IP20 B conforming to EN/IEC 60529
• Connection: Single terminal (top or bottom) 1…25 mm² rigid,Single terminal (top or bottom) 1…16 mm² flexible
• Operating temperature: -35…70 °C
• Colour: White
• Mounting: Removable comb busbar installed
