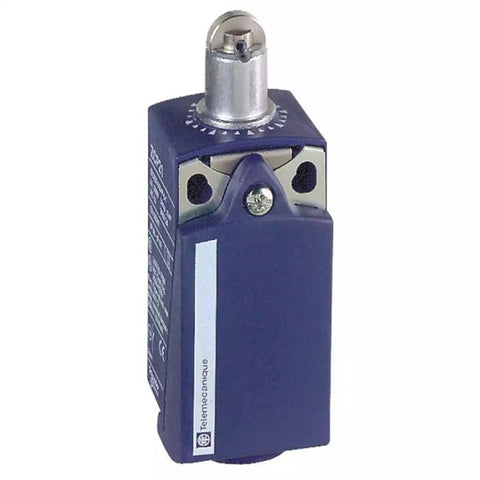

OsiSense XC Standard limit switch XCKP - steel roller plunger - 1NC+1NO - snap - M16

Name: Schneider Limit switch, steel roller plunger, 1NC + 1NO, snap, M16
Brand: Schneider Electric
SKU: XCKP2102P16
Price: 0.01 ZAR
Availability: InStock

Product Information

Product Code: XCKP2102P16

Product Details

Weight (in Kg)	0.079
Net weight	0.095 kg
Product Or Component Type	limit switch
Ambient air temperature for operation	-25 to 70 °C
Length	30
Contact Operation	snap action
Mechanical Durability	10000000 cycles
Positive Opening	with
Protective Treatment	TC
Short-circuit Protection	10 A cartridge fuse, type gG
Type Of Operator	spring return roller plunger metal
Series Name	standard format
Head Material	zamak
Head Type	plunger head
IK Degree Of Protection	IK04 conforming to EN 50102
Number Of Poles	2
Material	plastic
Sensor Design	compact form C conforming to CENELEC EN 50047
[IP] Degree of Protection	IP66 conforming to IEC 60529 IP67 conforming to IEC 60529
Body Material	plastic
Contacts Insulation Form	Zb
Contacts Type and Composition	1 NC + 1 NO
Maximum Actuation Speed	0.5 m/s
Minimum force for tripping	12 N
Movement of Operating Head	linear
Positive Opening Minimum Force	36 N
Switch Actuation	by 30° cam
Type of approach	lateral approach, 2 directions
Standards	EN 60204-1 IEC 60947-5-1 UL 508 CSA C22.2 No 14 EN 60947-5-1 IEC 60204-1
Electrical Durability	5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60664 6 kV conforming to IEC 60947-1
Contact code designation	A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
Electrical Shock Protection Class	class II conforming to IEC 61140 class II conforming to NF C 20-030
Terminals Description Iso N°1	(21-22)NC (13-14)NO
Product Certifications	CCC CSA UL
[ui] Rated Insulation Voltage	300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14
Ambient air temperature for storage	-40 to 70 °C
Compatibility code	XCKP
Depth	30 mm
Device short name	XCKP
Fixing Mode	by the body
Height	65-65 mm
Range of Product	Telemecanique Limit switches XC Standard
Shock Resistance	50 gn for 11 ms conforming to IEC 60068-2-27
Vibration Resistance	25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Width	31 mm
Cable entry	1 entry tapped for M16 x 1.5 cable gland, cable outer diameter: 4-8 mm
Electrical Connection	screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Maximum Resistance Across Terminals	25 MOhm conforming to IEC 60255-7 category 3
Body Type	fixed
Device Presentation	complete product
Repeat Accuracy	0.1 mm on the tripping points with 1 million operating cycles
Brand	Schneider Electric
