OsiSense XC Standard limit switch XCMD - steel roller plunger - 1NC+1NO - snap - 1 m

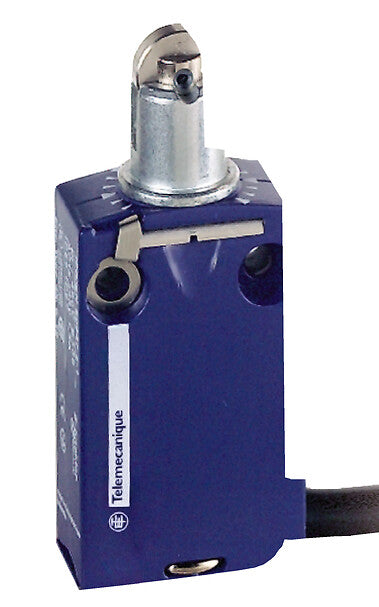

Name: Schneider Limit switch, steel roller plunger, 1NC + 1NO
Brand: Schneider Electric
SKU: XCMD2102L1
Price: 0.01 ZAR
Availability: InStock

Product Information

Product Code: XCMD2102L1

Product Details

Weight (in Kg)	0.1737
Net weight	0.185 kg
Product Or Component Type	limit switch
Ambient air temperature for operation	-25 to 70 °C
Length	1 m
Contact Operation	snap action
Mechanical Durability	10,000,000 cycles
Positive Opening	with
Protective Treatment	TC
Short-circuit Protection	6 A cartridge fuse, type gG
Type Of Operator	spring return roller plunger metal
Series Name	standard format
Cable Length	1 m
Head Material	zamak
Head Type	plunger head
IK Degree Of Protection	IK06 conforming to EN 62262
Number Of Poles	2
Cable Composition	5 x 0.75 mm²
Material	metal
Sensor Design	miniature
[IP] Degree of Protection	IP66, IP67, IP68 conforming to IEC 60529
Body Material	zamak
Contacts Insulation Form	Zb
Contacts Type and Composition	1 NC + 1 NO
Maximum Actuation Speed	0.5 m/s
Minimum force for tripping	7 N
Movement of Operating Head	linear
Positive Opening Minimum Force	35 N
Switch Actuation	by 30° cam
Type of approach	lateral approach, 2 directions
Standards	EN/IEC 60204-1, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14
Electrical Durability	5,000,000 cycles for various voltages
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 60664
Contact code designation	B300, R300 conforming to EN/IEC 60947-5-1
Product Certifications	CCC, CSA, UL
[ui] Rated Insulation Voltage	300 V (pollution degree 3) conforming to UL 508
Overvoltage Category	class I conforming to IEC 61140
Ambient air temperature for storage	-40 to 70 °C
Compatibility code	XCMD
Depth	16 mm
Device short name	XCMD
Fixing Mode	by the body
Height	50-50 mm
Range of Product	Telemecanique Limit switches XC Standard
Shock Resistance	25 gn for 18 ms conforming to IEC 60068-2-27
Vibration Resistance	5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Width	30 mm
Electrical Connection	removable cable connector
Maximum Resistance Across Terminals	25 mOhm conforming to IEC 60255-7 category 3
Body Type	fixed
